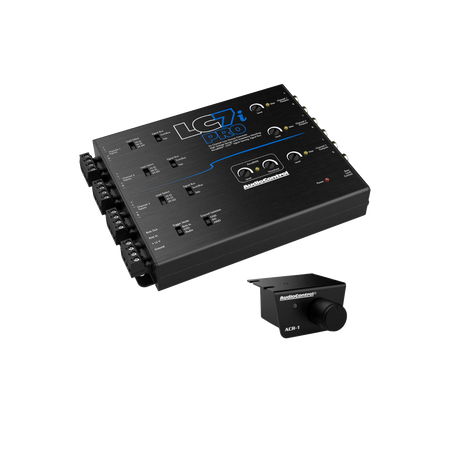

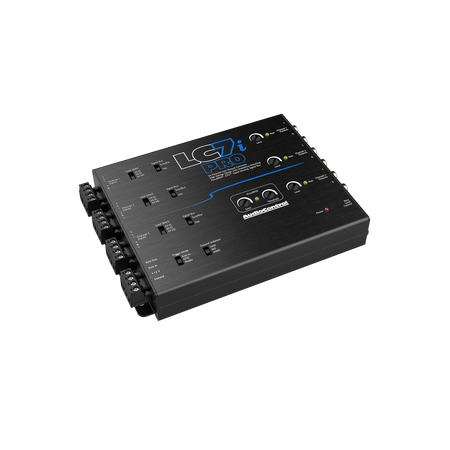

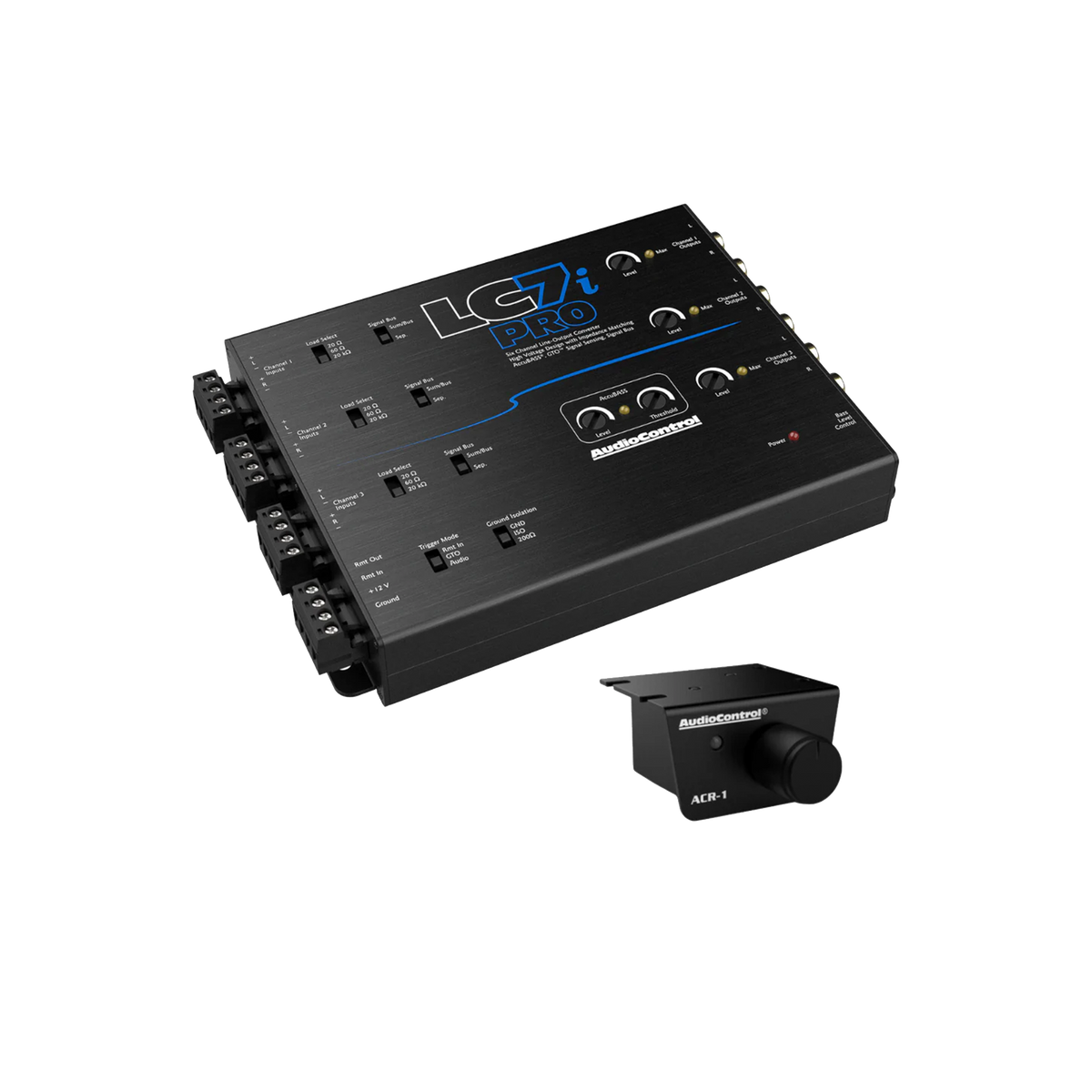

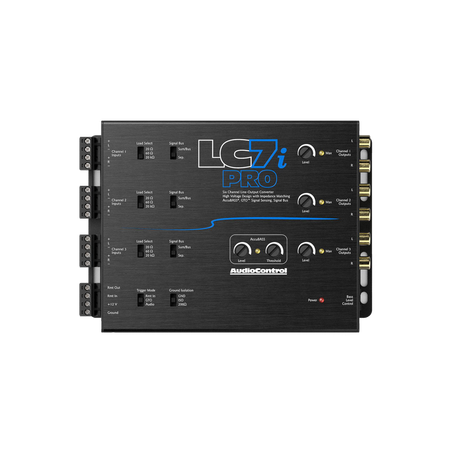

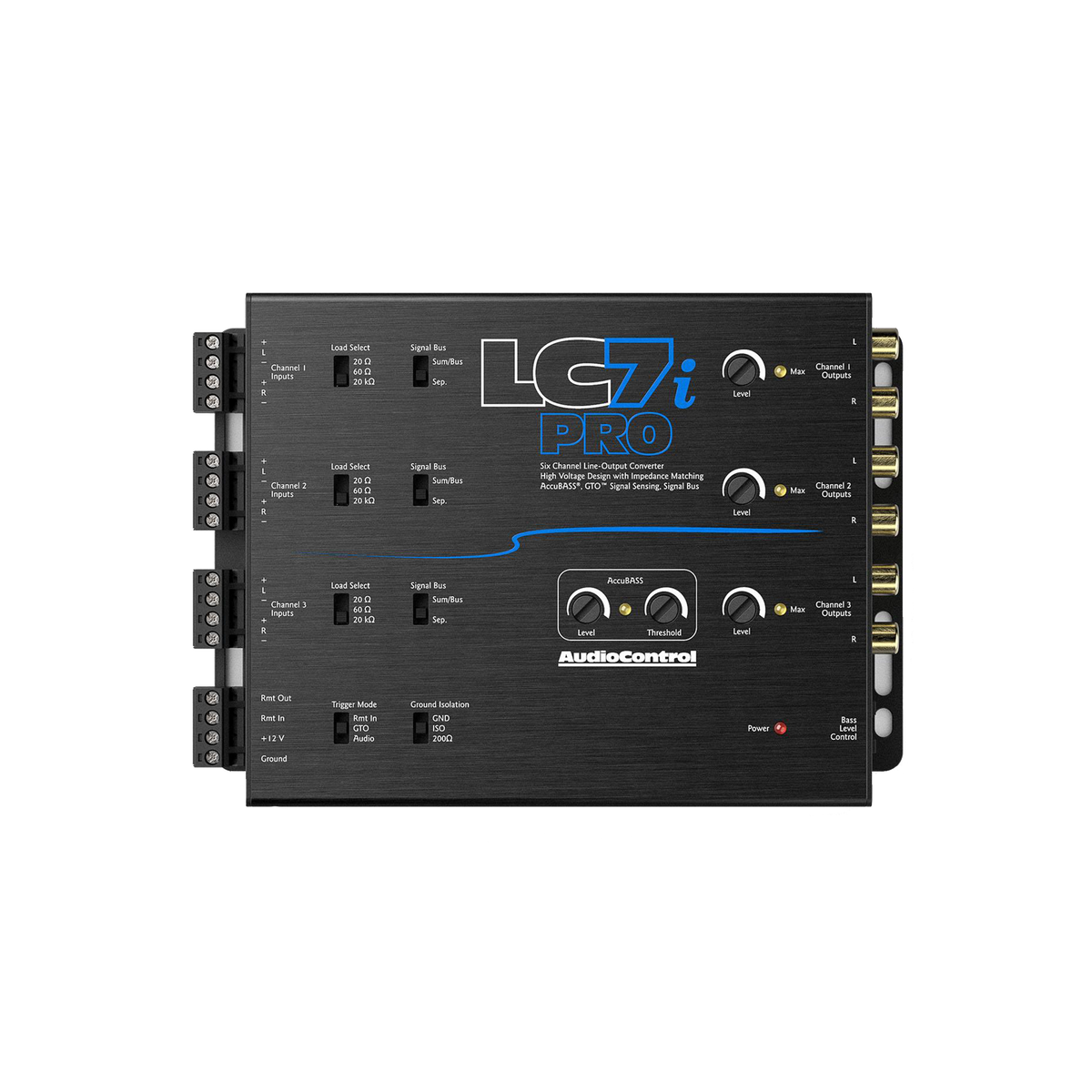

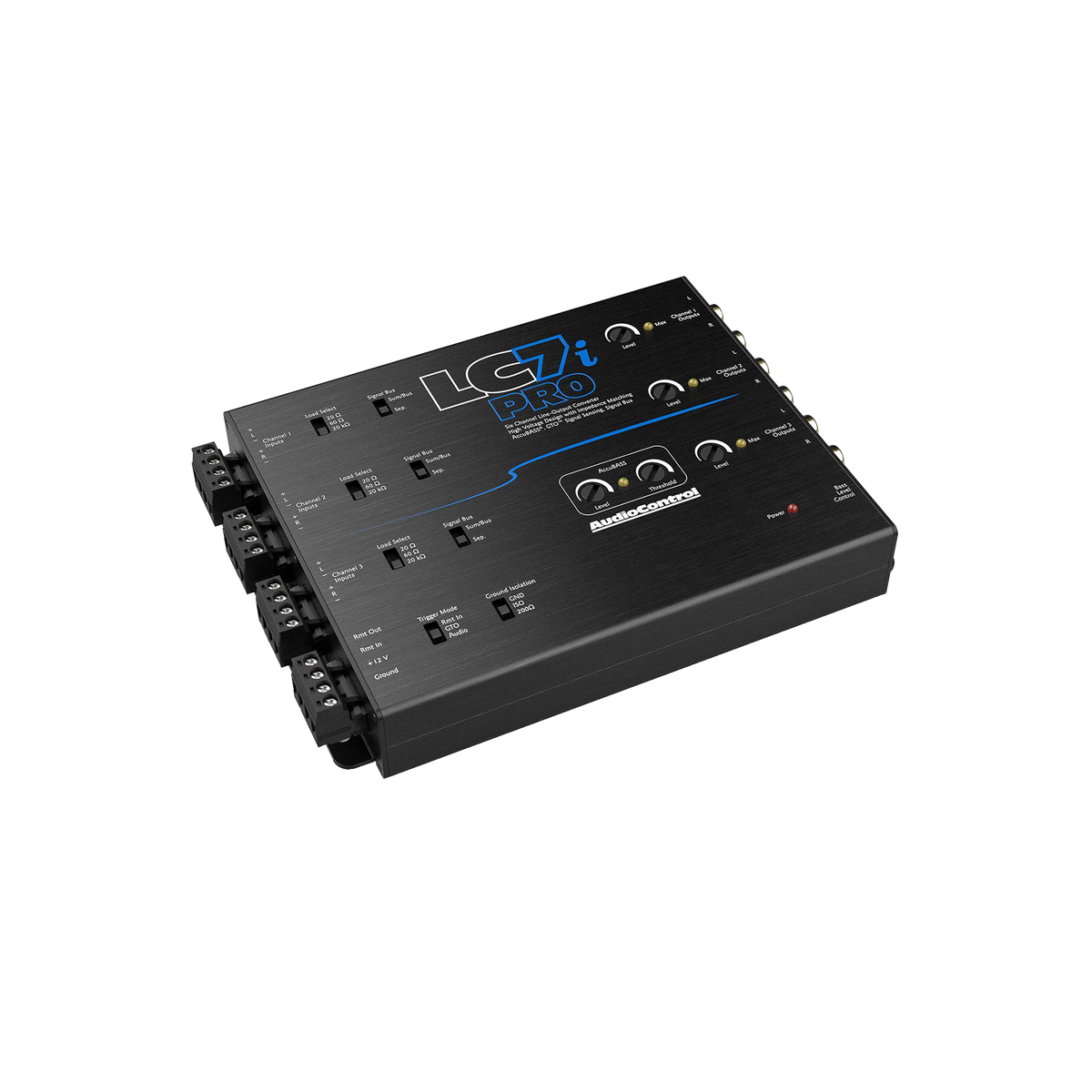

AudioControl LC7i PRO 6-Channel Line Output Converter with AccuBASS & ACR-1

AudioControl LC7i PRO 6-Channel Line Output Converter

Keep your factory radio while adding aftermarket amplification with the AudioControl LC7i PRO. Six active speaker-level inputs convert factory audio signals into RCA preamp outputs. Load Matching Circuit selection helps the converter work with factory systems that require a particular input load.

AccuBASS restores low-frequency output reduced by factory bass processing. Discrete level controls let you set output levels, and the included ACR-1 dash remote gives convenient bass adjustment from the driver seat. Choose GTO signal sensing, audio sensing or a standard 12-volt remote input for turn-on. Ground isolation selection helps address installation noise.

Features and specifications

• Six speaker-level input channels; maximum 40 Vrms / 400 W at the 20k-ohm setting
• Selectable input impedance: 20, 60 or 20,000 ohms
• Six preamp outputs: four main and two bass
• Maximum output: 9.5 Vrms / 13 V peak
• Output gain: +/-15 dB; output impedance: 150 ohms
• AccuBASS bass roll-off correction
• GTO, audio-sense and remote-input turn-on options
• 12-volt remote output for amplifier activation
• Frequency response: 20 Hz to 20 kHz
• THD: 0.01%; signal-to-noise ratio: greater than 124 dB
• Current draw: 330 mA; recommended fuse: 2 A
• Dimensions: 7 x 5.1 x 1.14 inches including speaker connectors; weight: 1.15 lb

Included

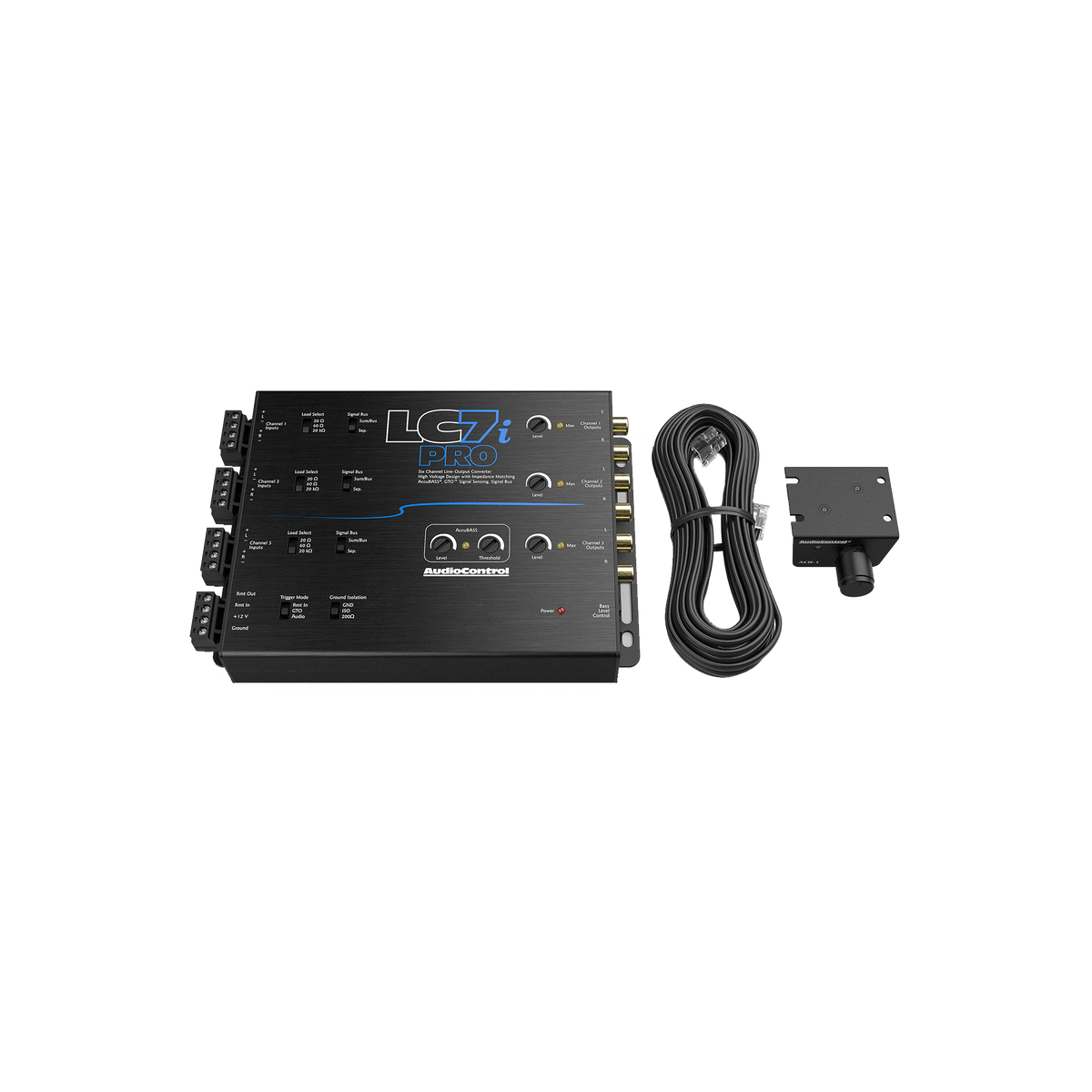

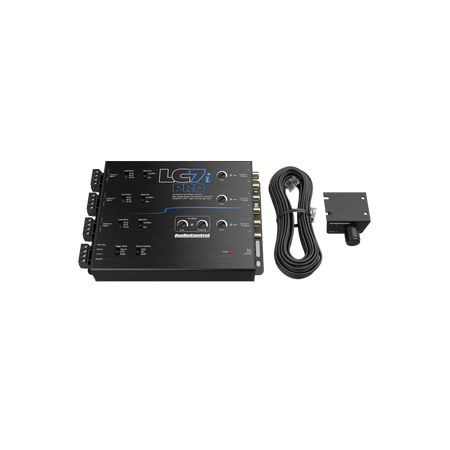

LC7i PRO, ACR-1 dash remote, 20-foot phone cable, speaker and power connectors, manual and warranty documentation.
