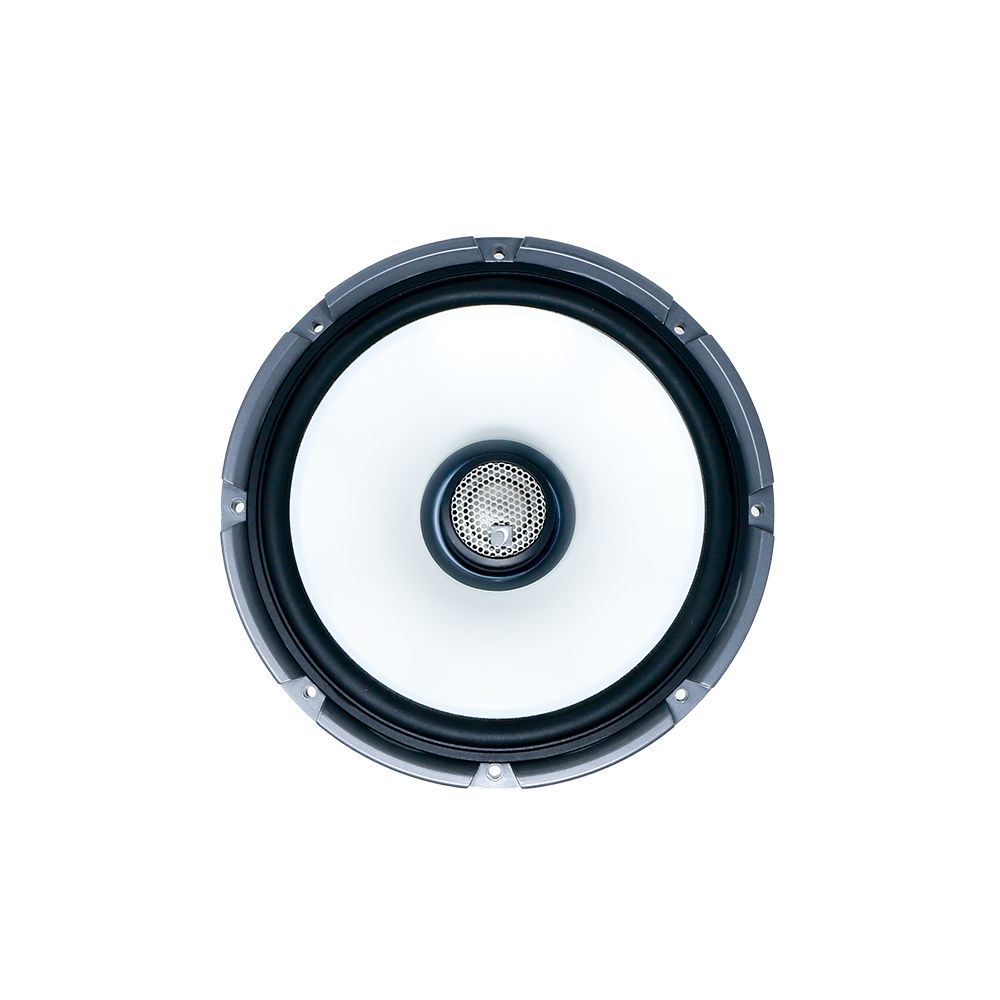

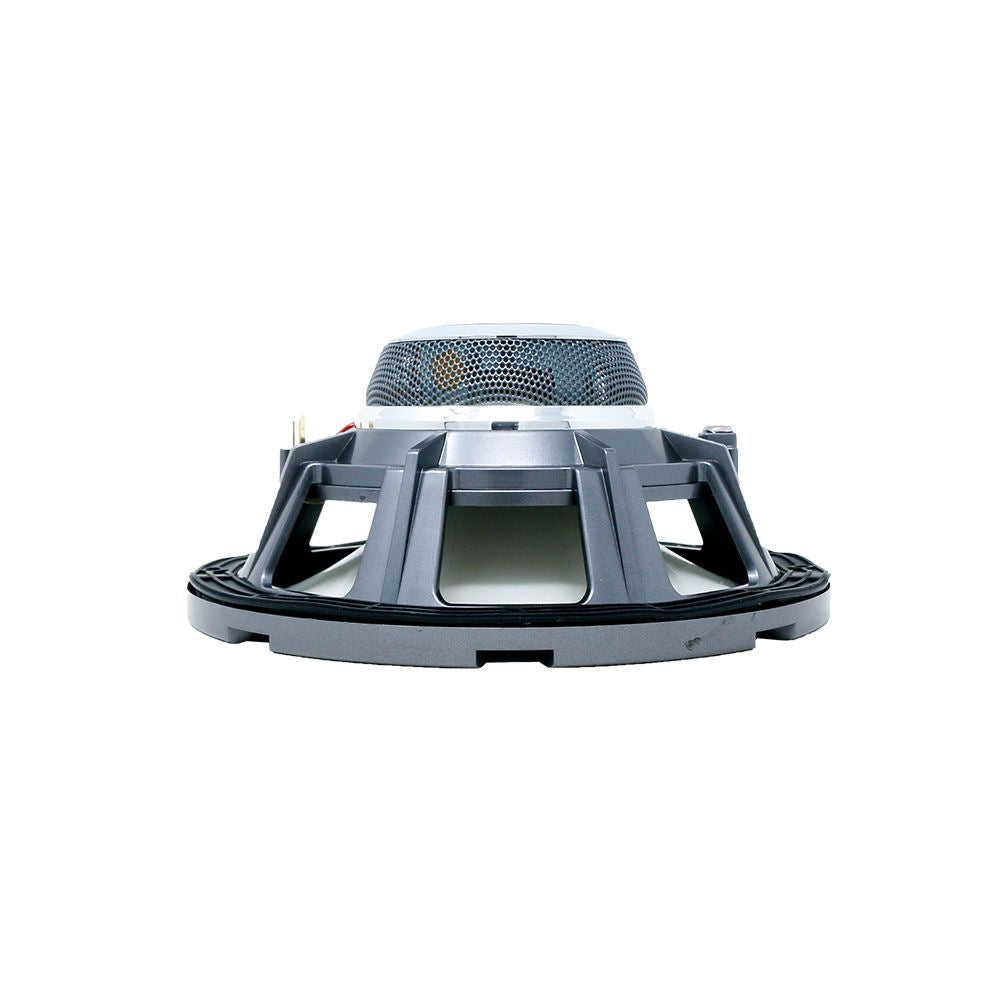

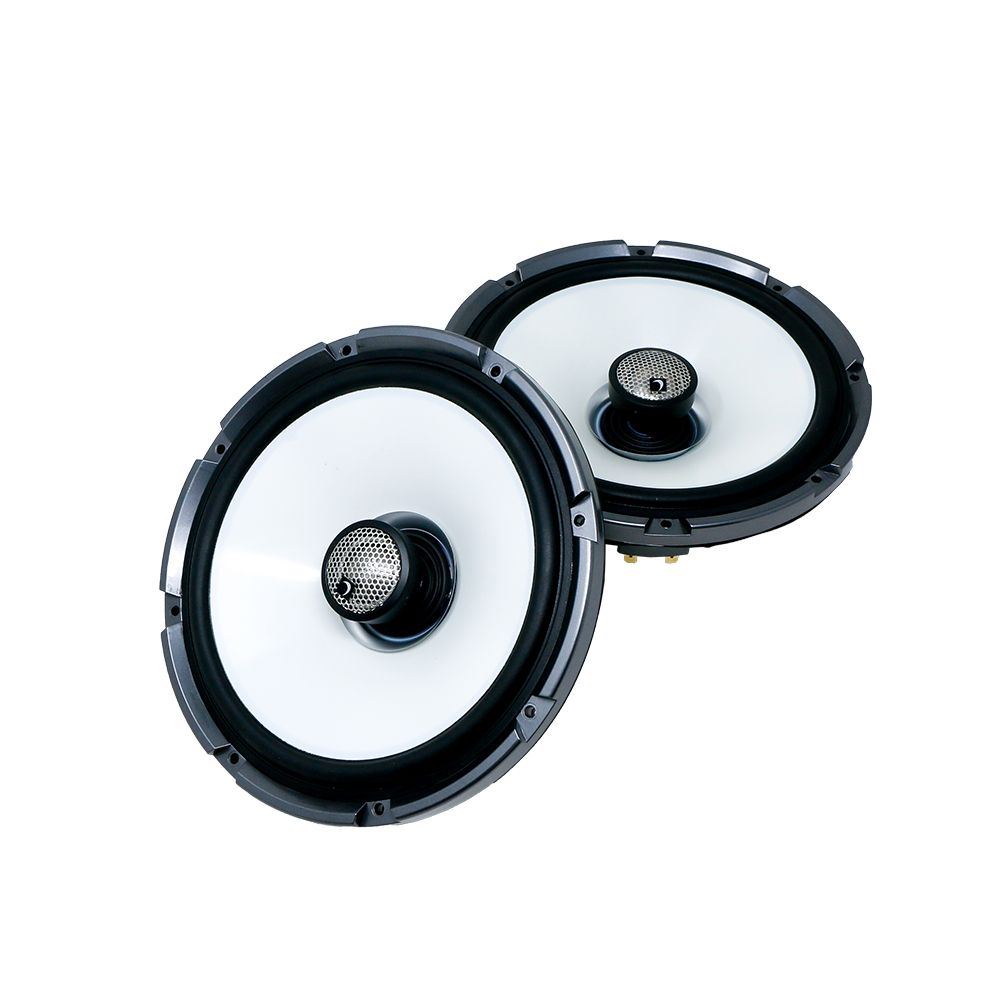

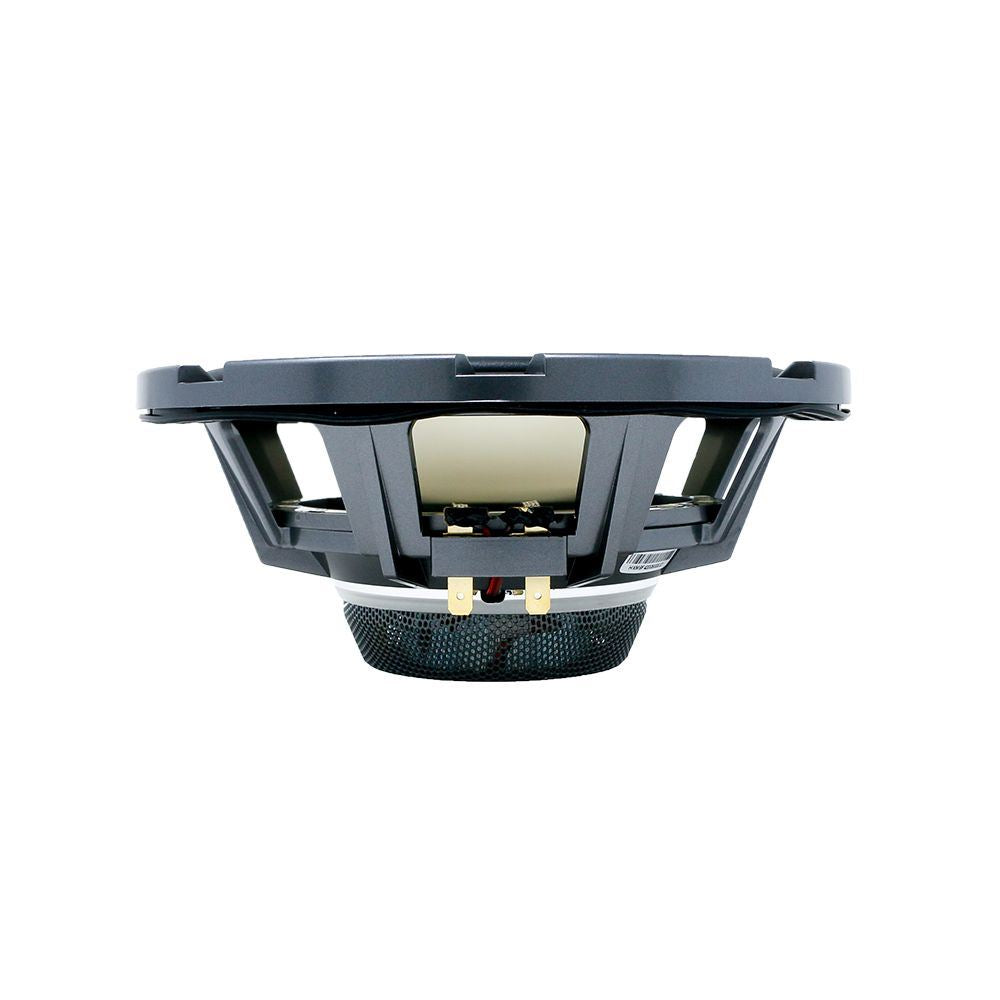

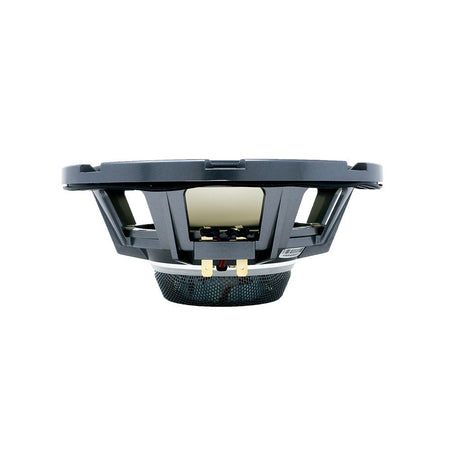

Diamond Audio HXM8F4 Multicolor UV-Coated Speaker for Motorsport Vehicles

Diamond Audio proudly expands its Motorsport HXM speaker line with a series of new flush mount version speakers and a higher performance, higher power handling elite series models. Designed with precise measurements to perfectly fit most Harley Davidson motorcycles and maintain that custom factory appearance. speaker grills come optional.

Features

• 125W RMS / 500W MAX Power Handling
• 2-Way 1" Titanium Dome Tweeter Speaker System (Pair)
• Water Spray and Salt Water Resistant, 100% UV Stable
• Ultra Small Neodymium Motor Structure with Max Xmax Suspension
• High Temp Injection Molded Composite Basket
• Molded, UV-Coated, Patent Pending Waterproof Cone
• Optional Remote Control - Part No.DALEDLC"
• Mounting Diameter: 6.38 x 9.33 in / 162 x 237 mm
• Mounting Depth: 2.28" / 58mm
• Grill is not included

Specifications

• Nominal Diameter (inch/mm): 8" (203)
• Description: 2-Way
• Nominal Impedance (ohms): 4Ω
• Frequency Response: 55-18kHz
• Voice Coil Diameter (inch/mm): 1.75 (44.7)
• Power Handling (RMS/Peak): 150/300
• Fs-Free Air Resonance (Hz): 60
• Vas (Liter): 0.159 (4.5)
• Qts: 0.783
• Sensitivity (1W/1M): 94dB
• Sensitivity (2.83V/1M): 97dB
• Xmax - Inch(mm): 0.16 (4)
• Mounting Diameter (inch/mm): 7.13" (181mm)
• Mounting Depth: 3.15" (80mm)
• Grille: OPTIONAL
