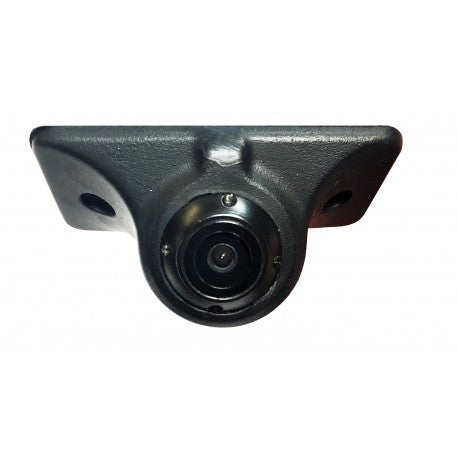

EchoMaster PCAM-BS1-N Self-Adhesive Side Mirror Blind Spot Camera

EchoMaster PCAM-BS1-N Blind Spot Camera

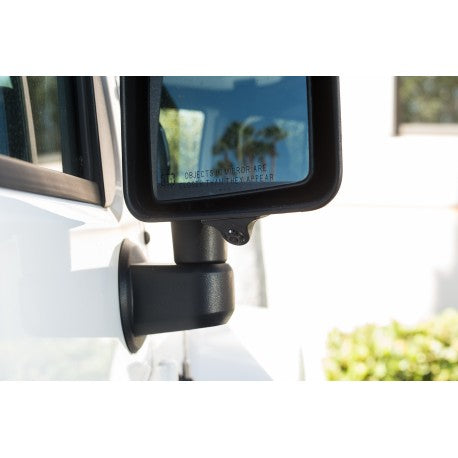

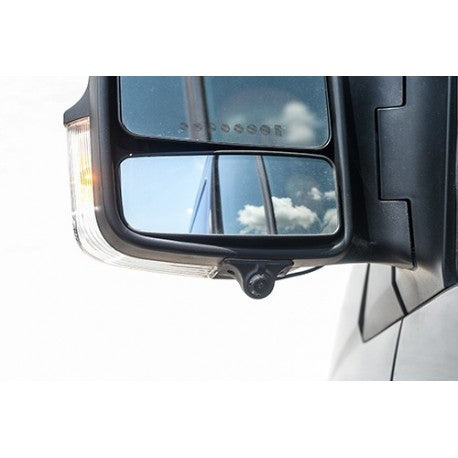

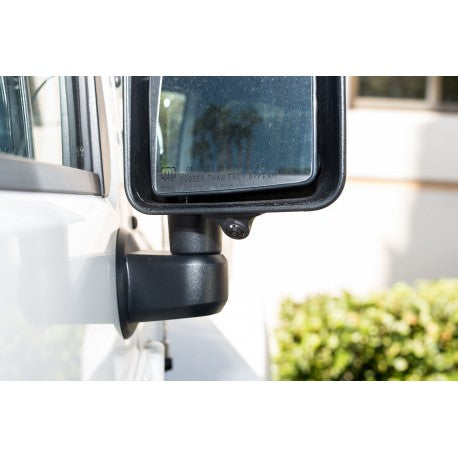

The EchoMaster PCAM-BS1-N adds a camera view where ordinary mirrors leave a blind spot. Its flexible, self-adhesive housing mounts beneath a side mirror for a discreet installation. The adjustable camera orientation helps position the view for lane-change assistance; the camera can also be used in front or rear viewing applications.

The 80-degree field of view focuses on the area beside the vehicle. A 1/4-inch CMOS sensor operates in lighting down to 0.1 lux, while an IP67-rated housing protects against water and debris. A compatible monitor and any required vehicle integration components are sold separately. Professional installation is recommended.

Features and specifications

• Model: PCAM-BS1-N; single camera
• NTSC video format
• Flexible housing with self-adhesive mounting
• Adjustable camera orientation
• 80-degree viewing angle
• 1/4-inch CMOS sensor; 0.1-lux minimum illumination
• IP67 water and debris protection
• Selectable parking guidelines and mirrored/non-mirrored image

Included

Camera, mounting hardware, U-shaped camera angle adjustment tool and manual.
