Kicker 53KEY2004 KEY200.4 4-Channel Smart Amplifier with Auto-EQ DSP

Upgrade a factory or aftermarket car audio system with clearer sound, better staging, and compact four-channel power. The Kicker KEY200.4 combines a 200-watt amplifier with automatic digital signal processing that tunes the system in minutes using the included setup microphone.

Smart automatic tuning

Press the selector and KEY technology analyzes the vehicle, then applies a 40-band equalizer, automatic time alignment, speaker-size detection, level adjustment, and 24 dB crossovers. It delivers the kind of tuning that would otherwise require extensive manual setup.

Compact power for factory systems

The KEY200.4 supplies 50 watts RMS to each of four channels at 4 ohms. Its compact chassis fits behind many radios, beneath a seat, or in the trunk. FIT2 integration technology accepts high-level factory-radio signals, while start-stop compatibility helps it work reliably in newer vehicles.

Key features

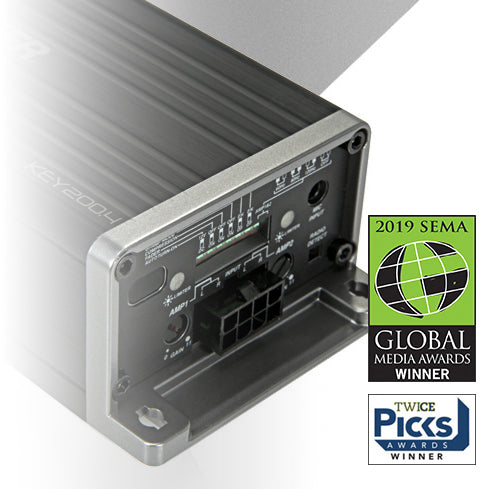

• 200 watts total output: 50 watts RMS x 4 at 4 ohms
• Built-in automatic 40-band equalizer
• Automatic time alignment and speaker-size detection
• Selectable bi-amp mode
• Defeatable Kicker EQ preset and automatic compressor

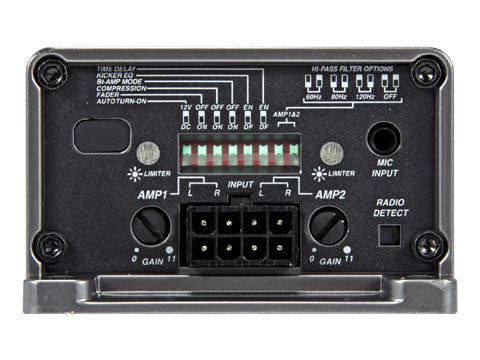

• Selectable 60, 80, or 120 Hz high-pass filter
• 24 dB-per-octave active crossovers
• FIT2 compatibility with factory and aftermarket radios
• Remote 12-volt or DC-offset turn-on

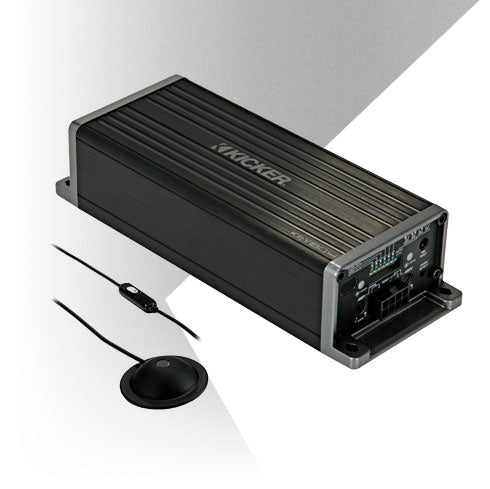

• Compatible with start-stop vehicle technology

Specifications

• Frequency response: 20 Hz–20 kHz, +0/-1 dB
• High-level input sensitivity: 250 mV–10 V
• Signal-to-noise ratio: greater than 90 dB, A-weighted

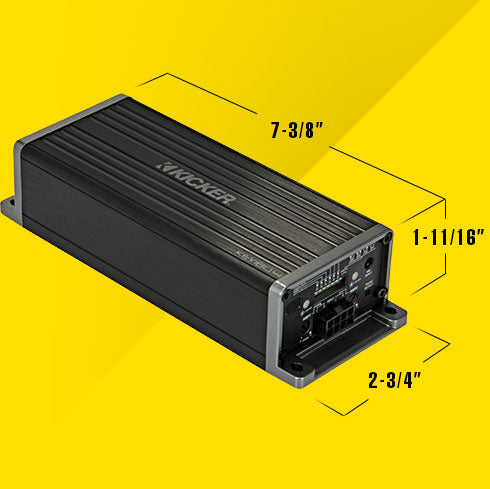

• Dimensions: 1-11/16 x 2-3/4 x 7-3/8 inches

What's in the box

• Kicker KEY200.4 four-channel amplifier

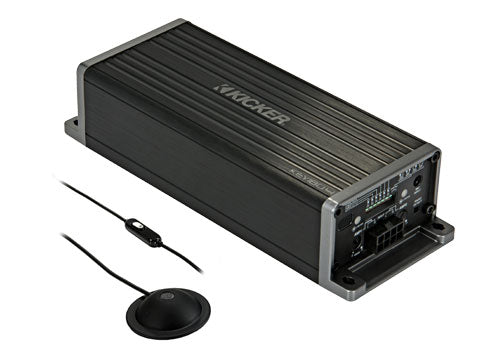

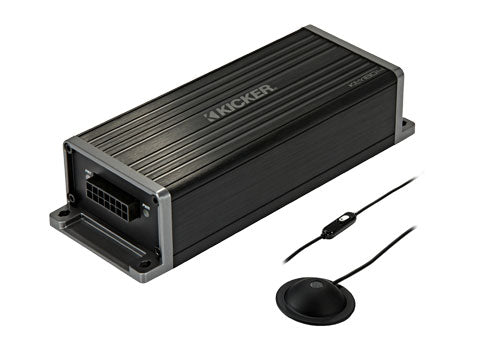

• Automatic tuning microphone
• Microphone cable with selector switch
• Fuse holder
• Manual and installation hardware
