Metra BC-DSPL-HD2 Harley-Davidson 2014-2021 6-Channel DSP Radio Reflash Interface

The Metra Saddle Tramp BC-DSPL-HD2 combines a digital signal processor with Harley-Davidson factory-radio integration for select touring motorcycles. Its integration technology can reprogram compatible OE radios for a flat frequency-response curve while providing detailed system tuning and expansion capability.

Compatibility

• Harley-Davidson Street Glide, Electra Glide, Ultra and Limited models: 2014-up applications supported by the original product documentation
• Harley-Davidson Road Glide: 2015-up applications supported by the original product documentation

DSP & Integration Features

• 6 channels of programmable DSP output
• 15-band graphic EQ or 5-band parametric EQ per channel
• Selectable crossover slopes: 12, 24, 36 or 48 dB per octave
• Selectable high-pass, low-pass and band-pass crossover per channel
• Independent front, rear and subwoofer equalization
• Time-delay adjustment
• Retains balance and fade control
• Built-in clipping detection and limiting
• Wireless tuning through the AXXESS DSP XL application
• Read, write and store configurations for future recall
• Micro-B USB updatable
• Water-resistant case and connections

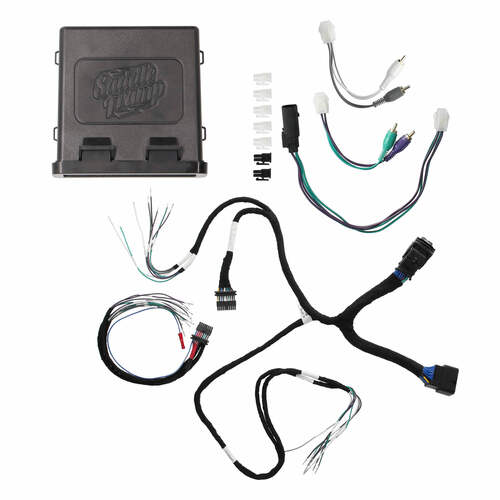

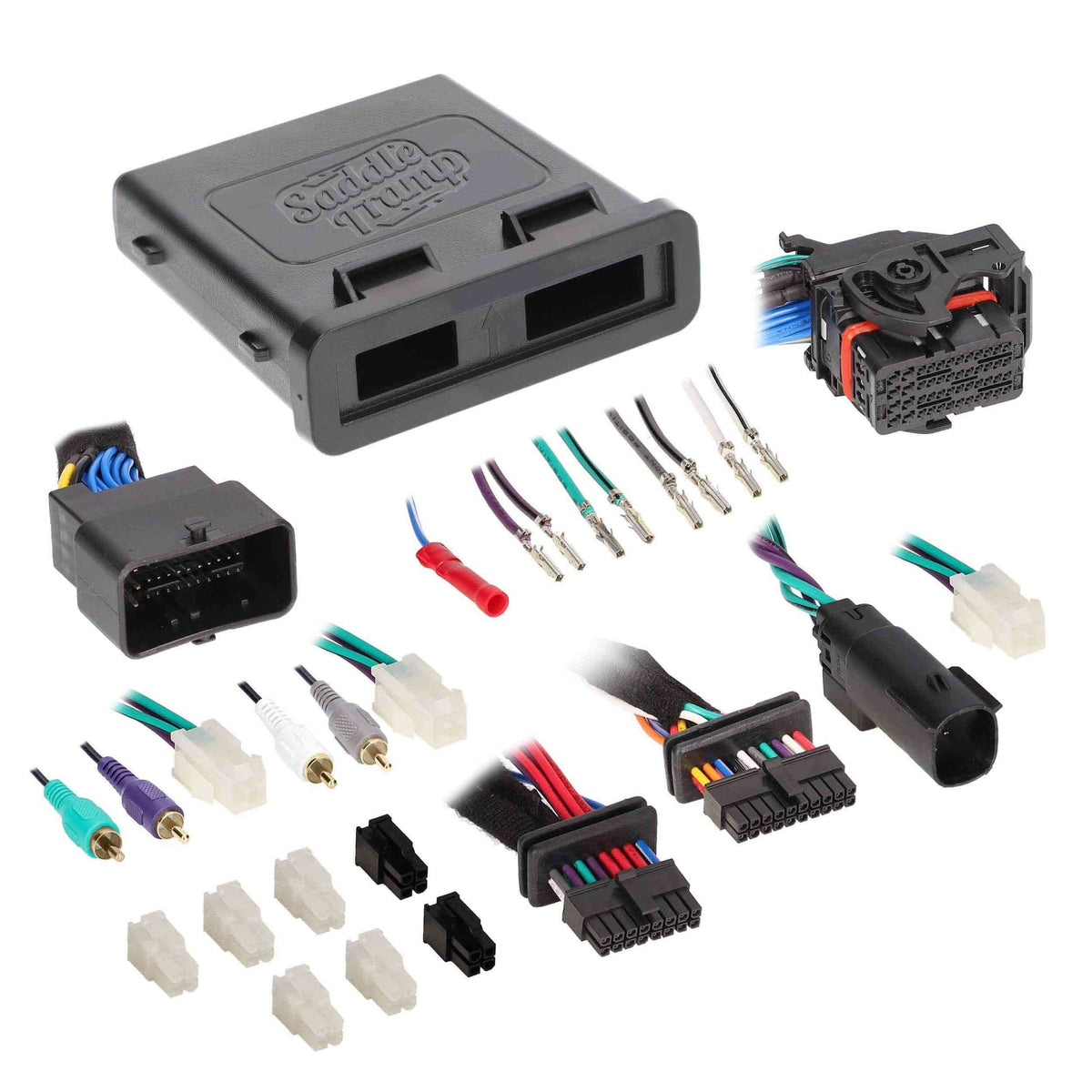

Included

• Saddle Tramp DSP
• BC-9715 pre-wired harness
• Bass knob
• Installation documentation

Metra's original documentation notes that radio reflash behavior depends on the factory radio and audio configuration. Verify the motorcycle's exact year, model and factory audio system before installation.
