MTX PROXP-20RC-THUNDER3 3-speaker amplified audio system for 2020+ Polaris RZR Pro XP vehicles w/RideCommand

MTX PROXP-20RC-THUNDER3 3-Speaker Audio Kit for Select Polaris RZR Pro XP w/ RC

Overview:

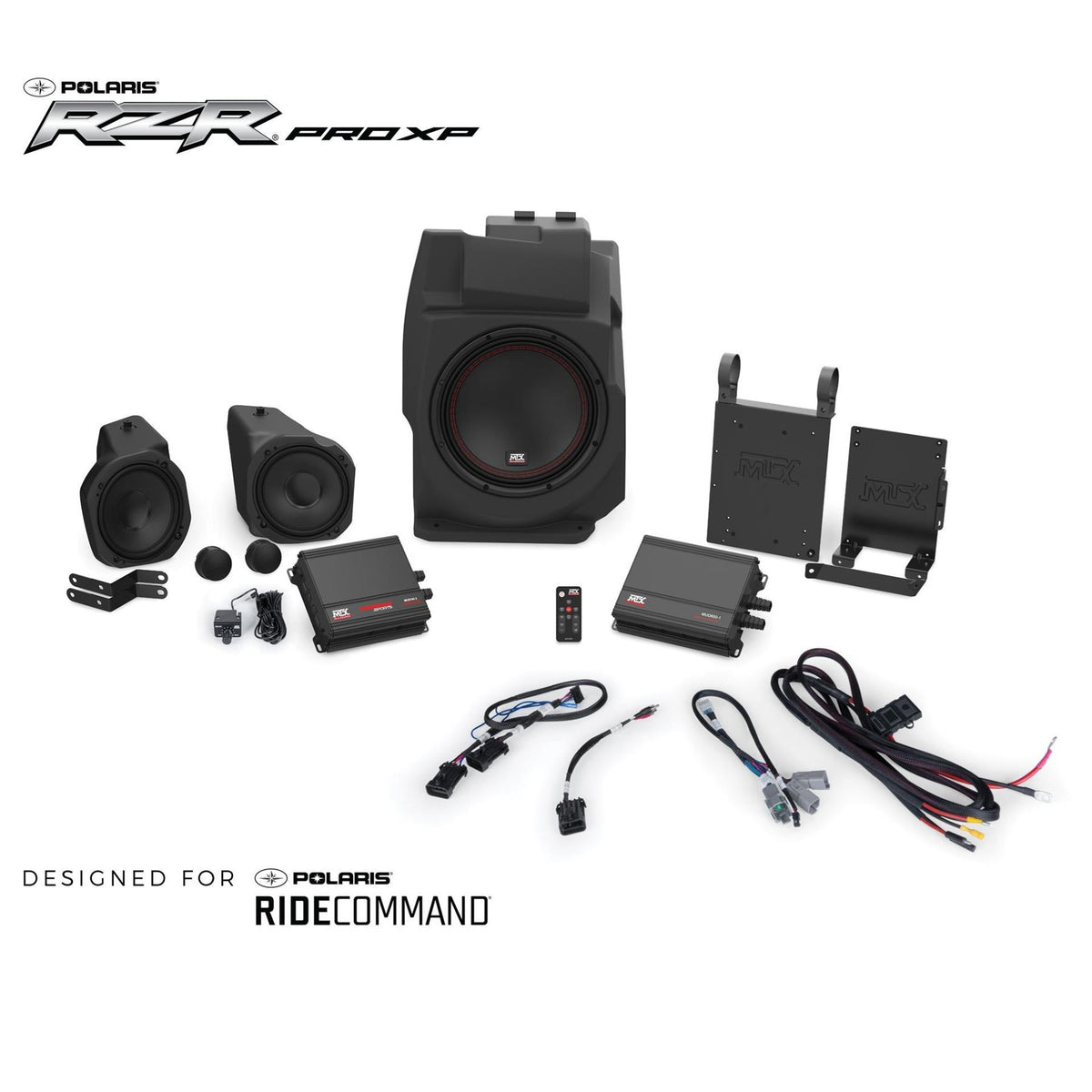

The PROXP-20RC-THUNDER3 audio kit is a complete plug and play 3-speaker audio system designed for the Polaris RZR Pro XP platform*. This kit fits all models that have an installed Ride Command system. Building of the capabilities of the Polaris Ride Command system the kit features full plug and play integration to the factory harness while power for the system is provided by the included MUD100.4 4-channel and MUD600-1 monoblock amplifiers. Front audio reproduction is handled by a set of the PROXP-20-FS component speakers. The lower 6 ½” rotationally molded speaker pod is designed to install in a matter of minutes and feature integrated RGB lighting while the 1” soft dome tweeter mounts in the upper dash top factory enclosure. Low end comes from the PROXP-20-SW subwoofer enclosure with its high output 10” subwoofer in a ported enclosure that mounts in the dash on the passenger side of the vehicle. Connections are made via integrated quick connect, watertight harnesses designed for harshest of riding environments. *Not Compatible with non-Pro XP Model RZR’s.

Plug and Play Connections

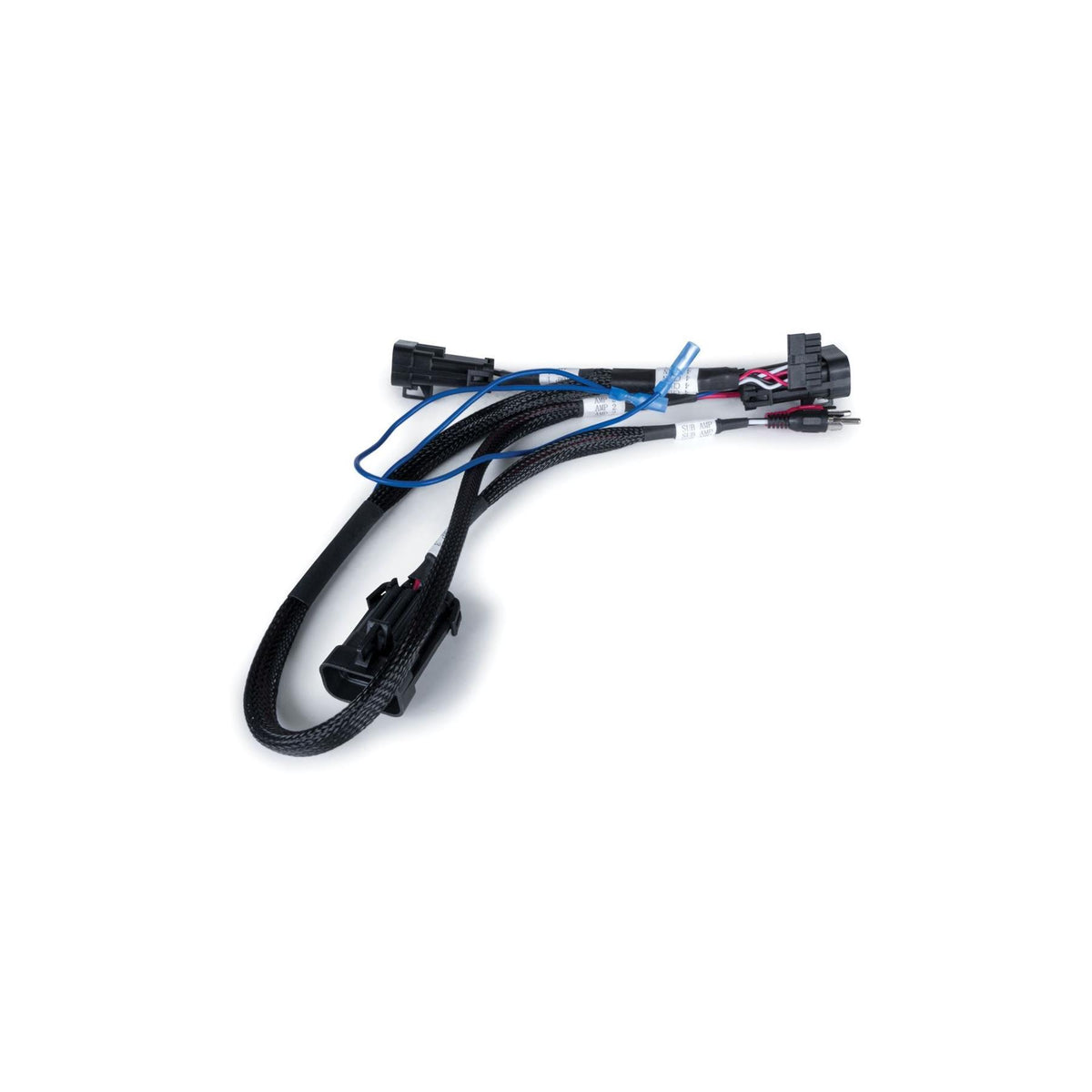

The PROXP-20RC-THUNDER3 includes all the wiring required to connect each component. All wiring is ruggedly designed to endure the harsh environments RZRs often find themselves in. All wires are terminated with the appropriate plug for the component being connected, making installation easy.

PROXP-20-FS Key Features:

• All-Weather Construction with UV Inhibitor
• Custom Fit for Dash Panel Panel
• No Cutting or Drilling Required
• 6.5" Midrange Speaker
• 1.0" Teteron Soft Dome Tweeter
• 75-Watt RMS Power
• Integrated RGB Lighting
• Fully assembled Out of the Box

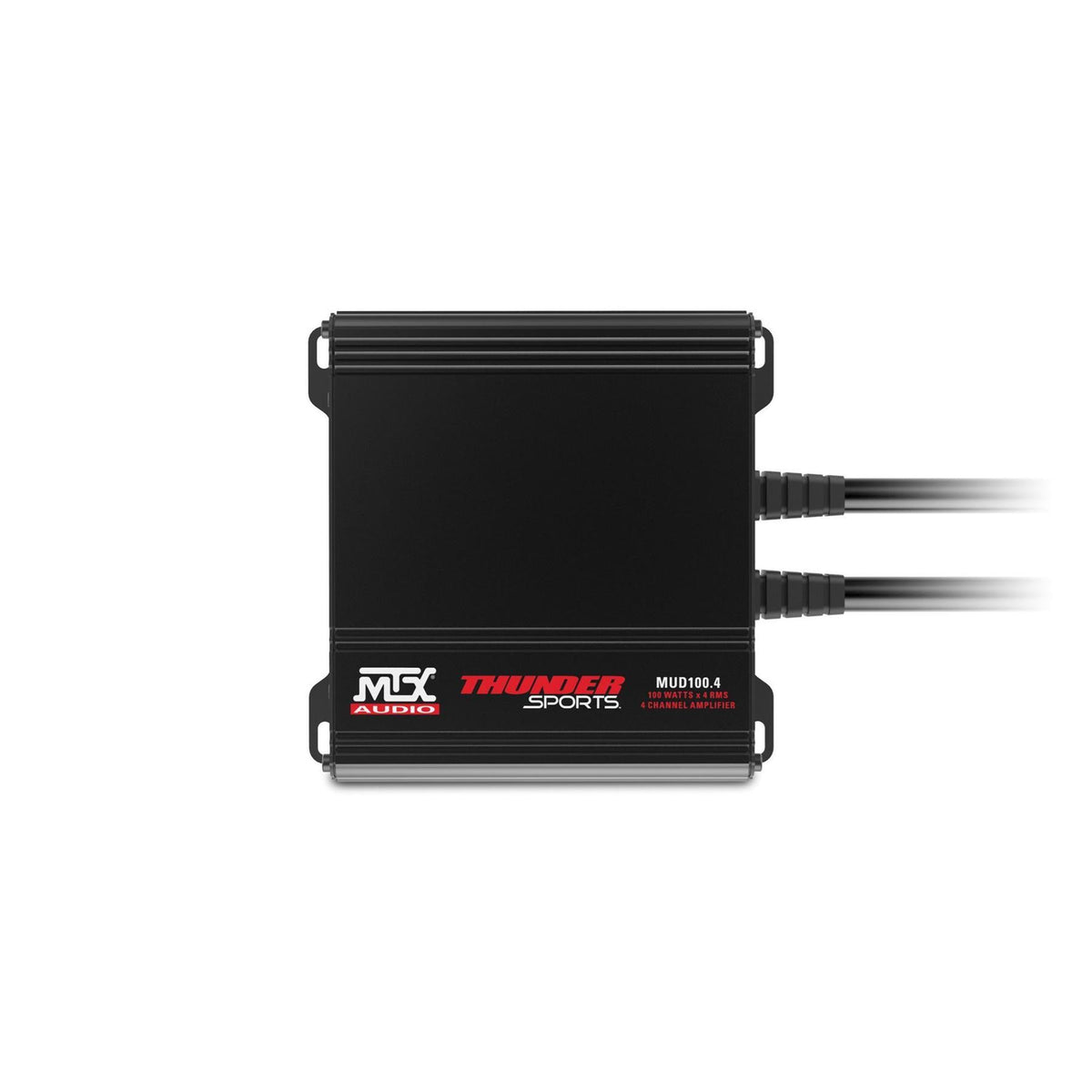

MUD100-4 Key Features

• Compact Design Enables Installation Anywhere
• Conformal Coated Printed Circuit Board that Resists Moisture
• Fixed Crossovers
• High and Low Level Inputs
• 400-Watts RMS Power

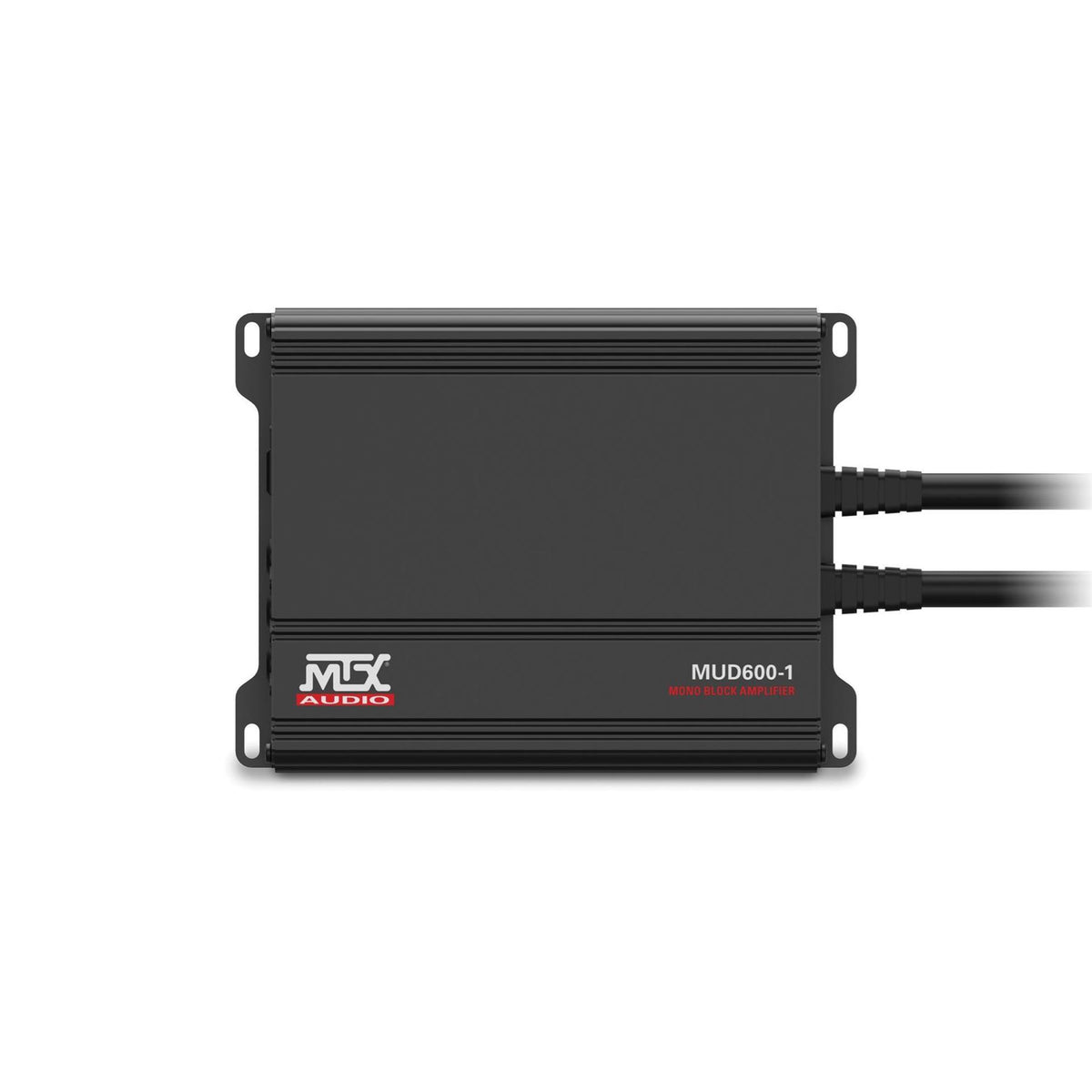

MUD600.1 Key Features:

• High Efficiency Class D Topology
• Compact Design Enables Installation Anywhere
• Conformal Coated Printed Circuit Board that Resists Moisture
• Fixed Crossovers
• High and Low Level Inputs
• 600-Watts RMS Power

PROXP-20-SW Key Features:

• 10" Custom Fit Subwoofer Enclosure
• 400-Watt RMS Power
• High Mount Ported
• Mounts Behind Dashboard on Passenger Side
• Quick Installation with Installer Friendly Design
• Fully assembled Out of the Box

Compatibility Chart:

Fitment Guide Note: The amp racks are not compatible with Polaris heater option.
