MTX PROXP-20RC-THUNDER5 5-speaker amplified audio system for 2020+ Polaris RZR Pro XP vehicles w/RideCommand

MTX PROXP-20RC-THUNDER5 5-Speaker Audio System for Select Polaris RZR Pro XP

The PROXP-20RC-THUNDER5 audio kit is a complete plug and play 5-speaker audio system designed for the Polaris RZR Pro XP platform*. This kit fits all models that have an installed Ride Command system. Building of the capabilities of the Polaris Ride Command system the kit features full plug and play integration to the factory harness while power for the system if provided by the included MUD100.4 4-channel and MUD600-1 monoblock amplifiers. Front audio reproduction is handled by a set of the PROXP-20-FS component speakers. The lower 6 ½” rotationally molded speaker pod is designed to install in a matter of minutes and feature integrated RGB lighting while the 1” soft dome tweeter mounts in the upper dash top factory enclosure. Low end comes from the PROXP-20-SW subwoofer enclosure with its high output 10” subwoofer in a ported enclosure that mounts in the dash on the passenger side of the vehicle. Rear sound is provided by a pair of our MUD65PL speaker cans which feature integrated RGB lighting in a compact design with plug and play connectivity. Connections are made via integrated quick connect, watertight harnesses designed for harshest of riding environments. *Not Compatible with non-Pro XP Model RZR’s.

MUDLEDC Remote Control Key Features:
The MUDLEDC allows you to control the following functions:
• Power On/Off
• Increase/Decrease Flash Rate
• Change Color - 20 Available Options
• Cycle Through Dynamic Modes
• Increase/Decrease LED Brightness

PROXP-20-FS Front Speakers Key Features:
• All-Weather Construction with UV Inhibitor
• Custom Fit for Dash Panel
• No Cutting or Drilling Required
• 6.5" Midrange Speaker
• 1.0" Teteron Soft Dome Tweeter
• 75-Watt RMS Power
• Integrated RGB Lighting
• Fully assembled Out of the Box

FRONT SPEAKER SPECIFICATIONS:
RMS Power (Watts) 75
Sensitivity 92dB (2.83V/1m)
Frequency Response 70Hz - 20kHz
Impedance 3.4 Ohms

MUD65PL Rear Speakers Key Features:
• Weather Resistant 6.5" Speaker Pods
• Fits Bars with Diameters of 1.75", 1.85", and 2"
• Internal Crossover Network
• ABS Impact Resistant Grille with UV Inhibitor
• Integrated RGB Lighting
• Optional Remote Control and Wiring Harness Available for Custom Color Creation (MUDLEDC)

REAR SPEAKER SPECIFICATIONS:
Speaker Size 6.5", 2-Way
Sensitivity 86dB
Frequency Response 70Hz-20kHz
Dimensions 9.34" x 7.09" x 8.76"

PROXP-20-SW Subwoofer Key Features:
• 10" Custom Fit Subwoofer Enclosure
• 400-Watt RMS Power
• High Mount Ported
• Mounts Behind Dashboard on Passenger Side
• Quick Installation with Installer Friendly Design
• Fully assembled Out of the Box

SUBWOOFER SPECIFICATIONS:
Subwoofer 10"
RMS Power (Watts) 400
Sensitivity 90.2dB (2.83V/1m)
Frequency Response 28Hz - 130Hz

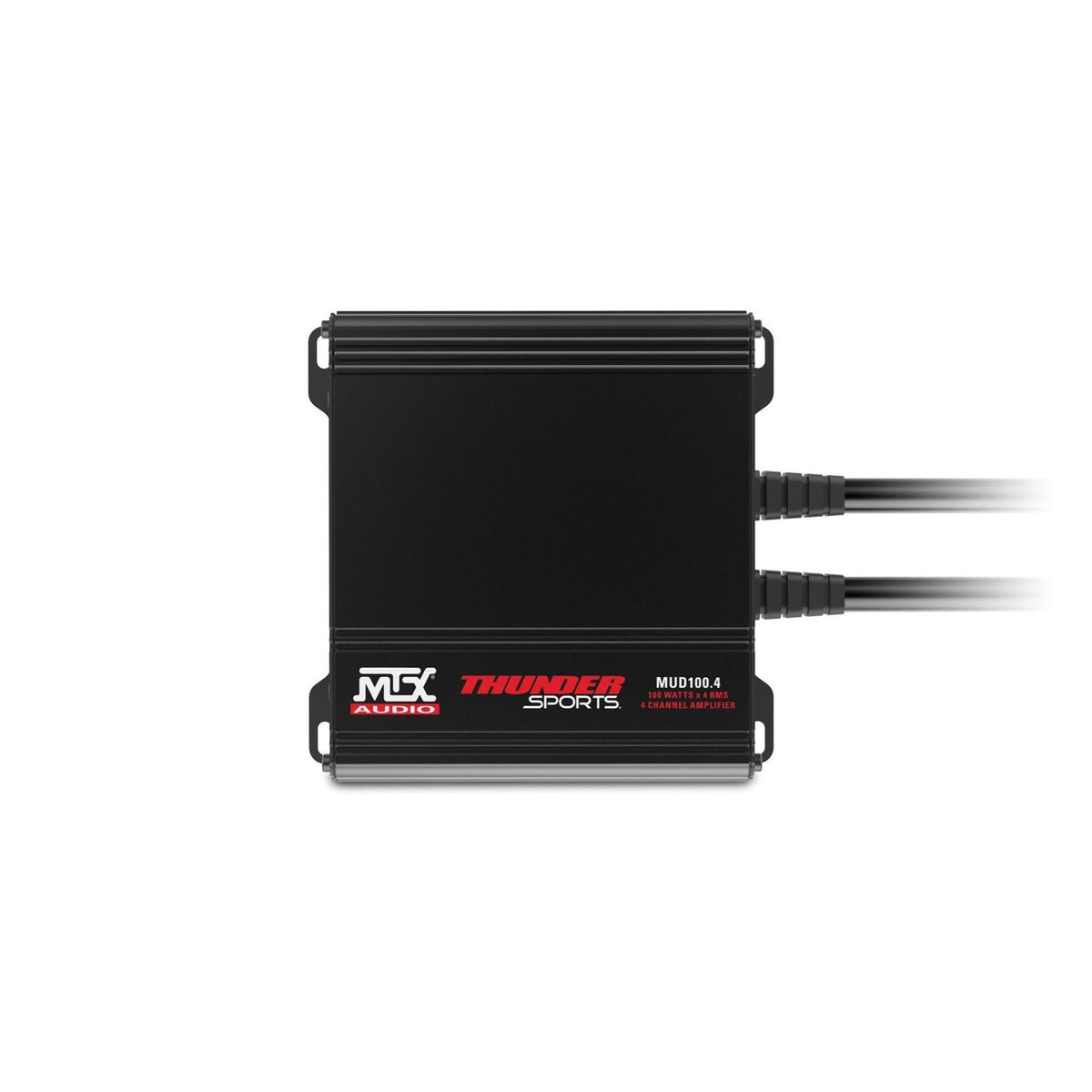

MUD100.4 Amplifier Key Features:
• Compact Design Enables Installation Anywhere
• Conformal Coated Printed Circuit Board that Resists Moisture
• Fixed Crossovers
• High and Low Level Inputs
• 400-Watts RMS Power

4-CHANNEL AMPLIFIER SPECIFICATIONS:
4Ω RMS Power Output 50W x 4 Channels
2Ω RMS Power Output 100W x 4 Channels
4Ω Bridged 200W RMS x 2 Channels
Topology Full Range Class D
THD <0.2%
Frequency Response 10Hz - 32kHz
Crossover Fixed HPF/LPF @ 80Hz, 12dB/Octave
Max Sensitivity 200mV
Maximum Input Signal 5V
Height 6.52" (165.5mm)
Width 5.51" (140mm)
Depth 1.86" (47.2mm)

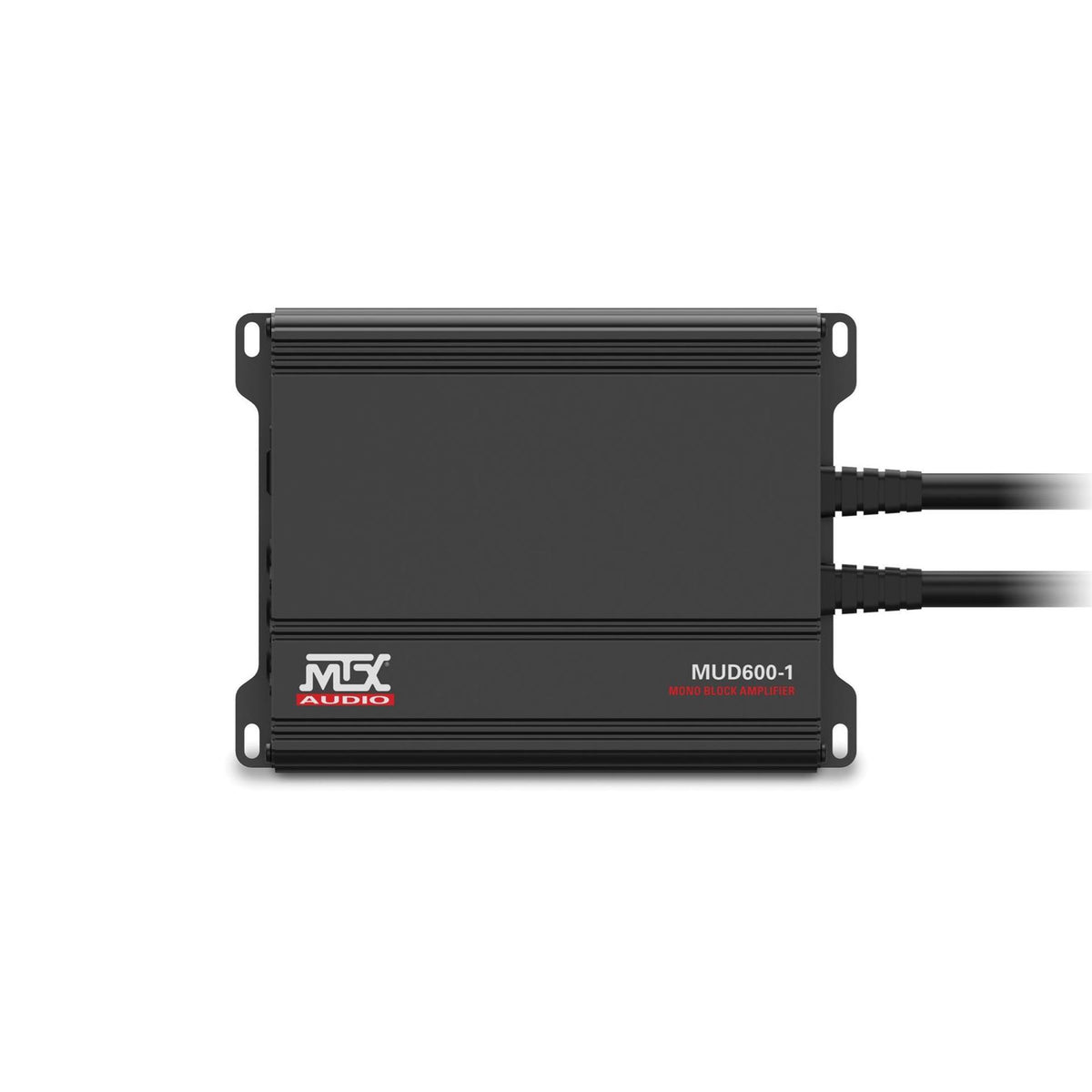

MUD600.1 Amplifier Key Features:
• High Efficiency Class D Topology
• Compact Design Enables Installation Anywhere
• Conformal Coated Printed Circuit Board that Resists Moisture
• Fixed Crossovers
• High and Low Level Inputs
• 600-Watts RMS Power

MONOBLOCK AMPLIFIER SPECIFICATIONS:
Description Mono Block
4Ω RMS Power Output 300W x 1 Channel
2Ω RMS Power Output 650W x 1 Channel
1Ω RMS Power Output NA
Signal to Noise Ratio 85 dBA
Topology Class D
THD <1.0%
Frequency Response 10Hz - 250Hz
Crossover Variable Low @ 40 - 250Hz
Height 1.85" (47mm)
Width 5.51" (140mm)
Depth 7.36" (187mm)

NOT COMPATIBLE WITH NON-PRO XP MODEL RZR's

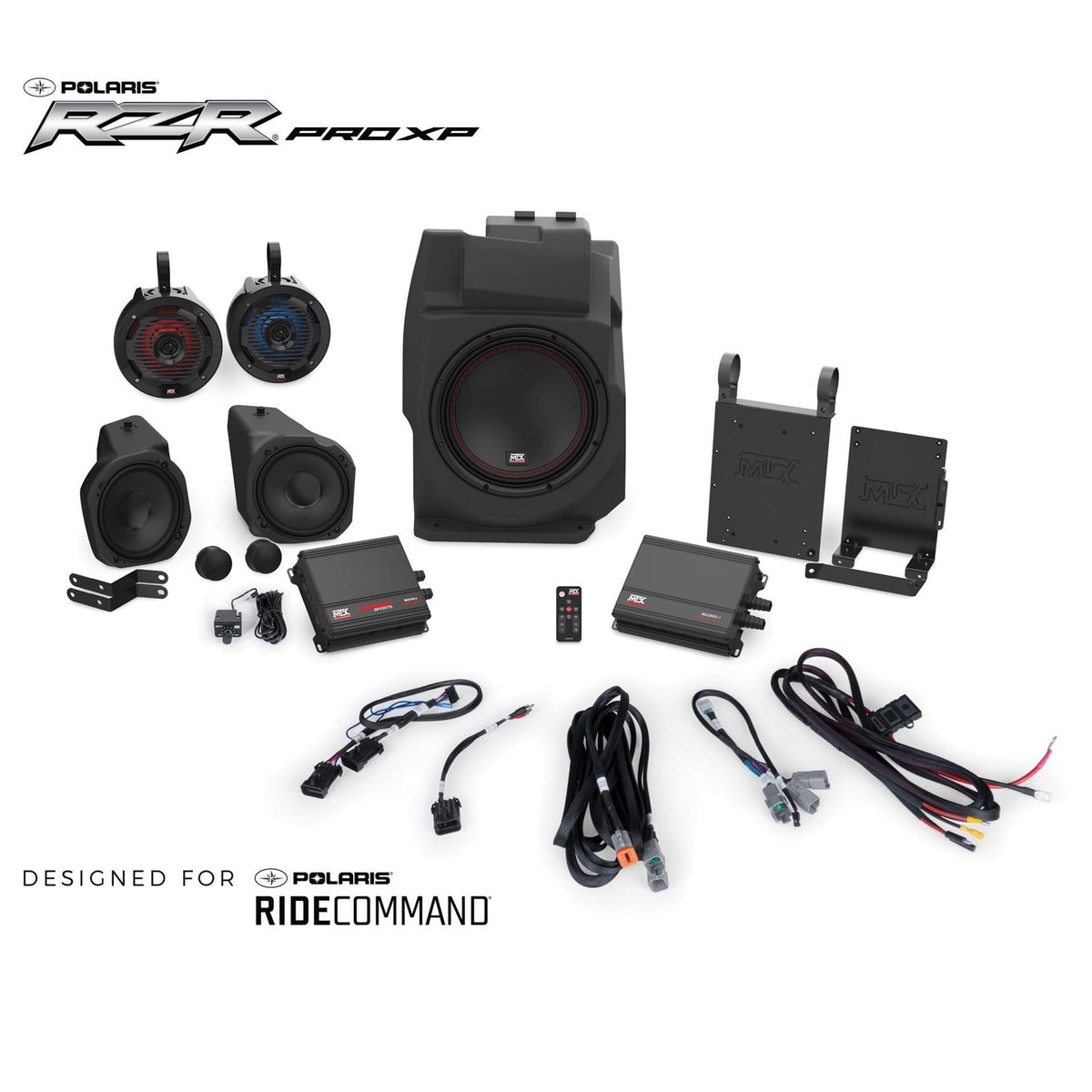

What's in the Box?
(2) Front speaker pods and tweeters

(2) Rear cage speaker pods

(2) Mounting brackets

(2) T30 Torx 20mm long course thread

(4) T20 Torx 15mm long course thread

(8) T20 Torx 29.5mm long course thread

(1) Subwoofer enclosure

(1) Mounting bracket

(3) 6mm-1.00 x 15mm Hex head bolts

(2) T40 Torx 45mm long pan head bolts

(1) 4-Channel amplifier

(1) Mono Block amplifier

(2) Amplifier mounting bracket

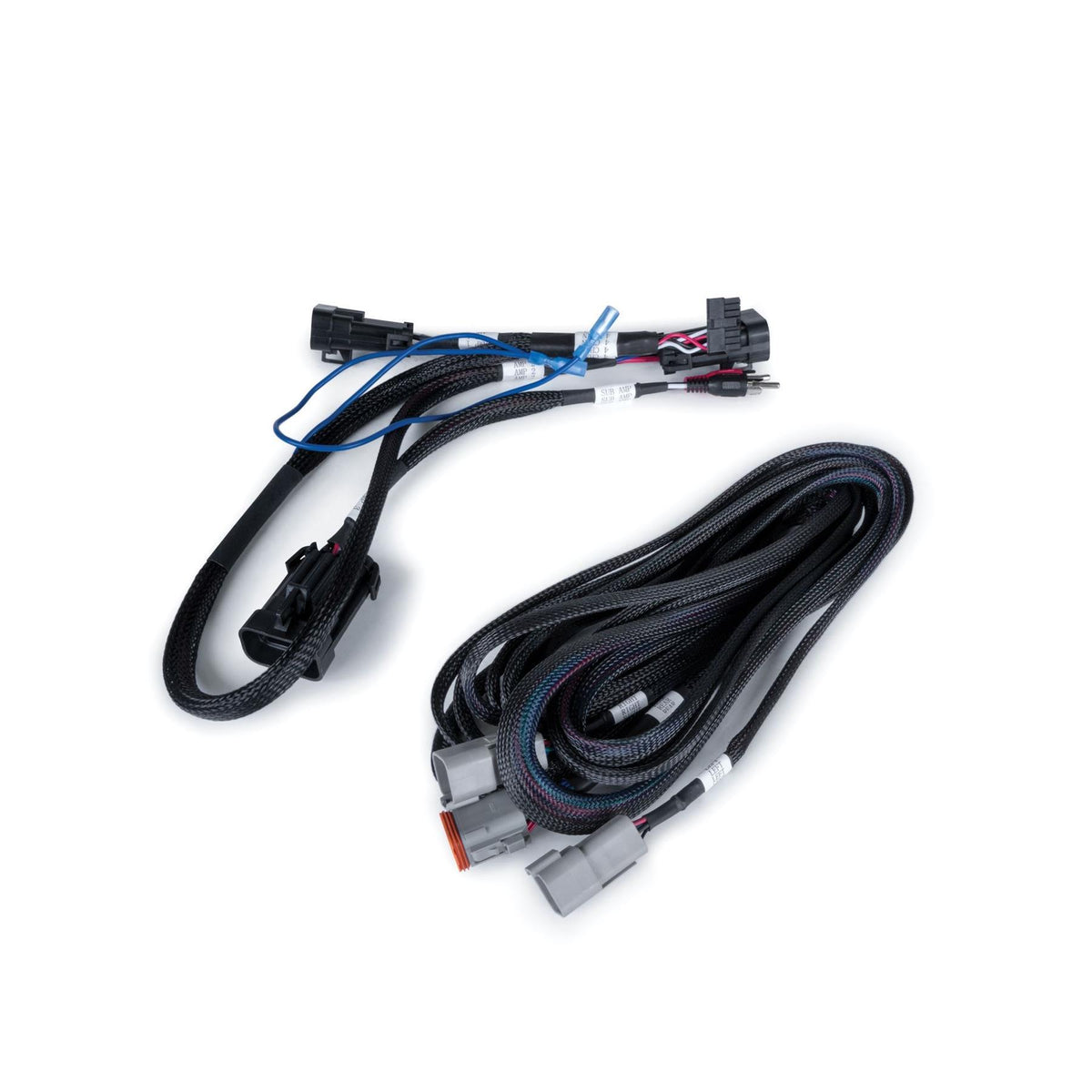

(1) Amplifier wiring harness

(1) External bass control know

(1) Remote control

(1) Rear speaker harness

(1) Ride command harness

(1) RGB LED power harness

(16) Black zip ties

Compatibility Chart:

RZR Models	2020	2021	2022
RZR Pro XP / XP4 Sport
RZR Pro XP / XP4 Premium
RZR Pro XP / XP4 Ultimate
RZR Pro XP / XP4 Sport RFLE
RZR Pro XP / XP4 Ultimate RFLE
RZR Pro R / R 4 Sport
RZR Pro R / R 4 Premium
RZR Pro R / R 4 Ultimate
RZR Turbo R / R 4 Sport
RZR Turbo R / R 4 Premium
RZR Turbo R / R 4 Ultimate
