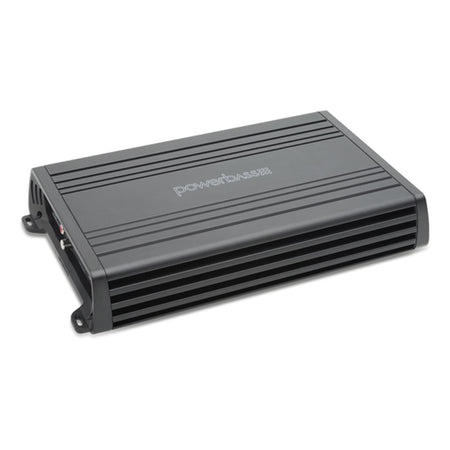

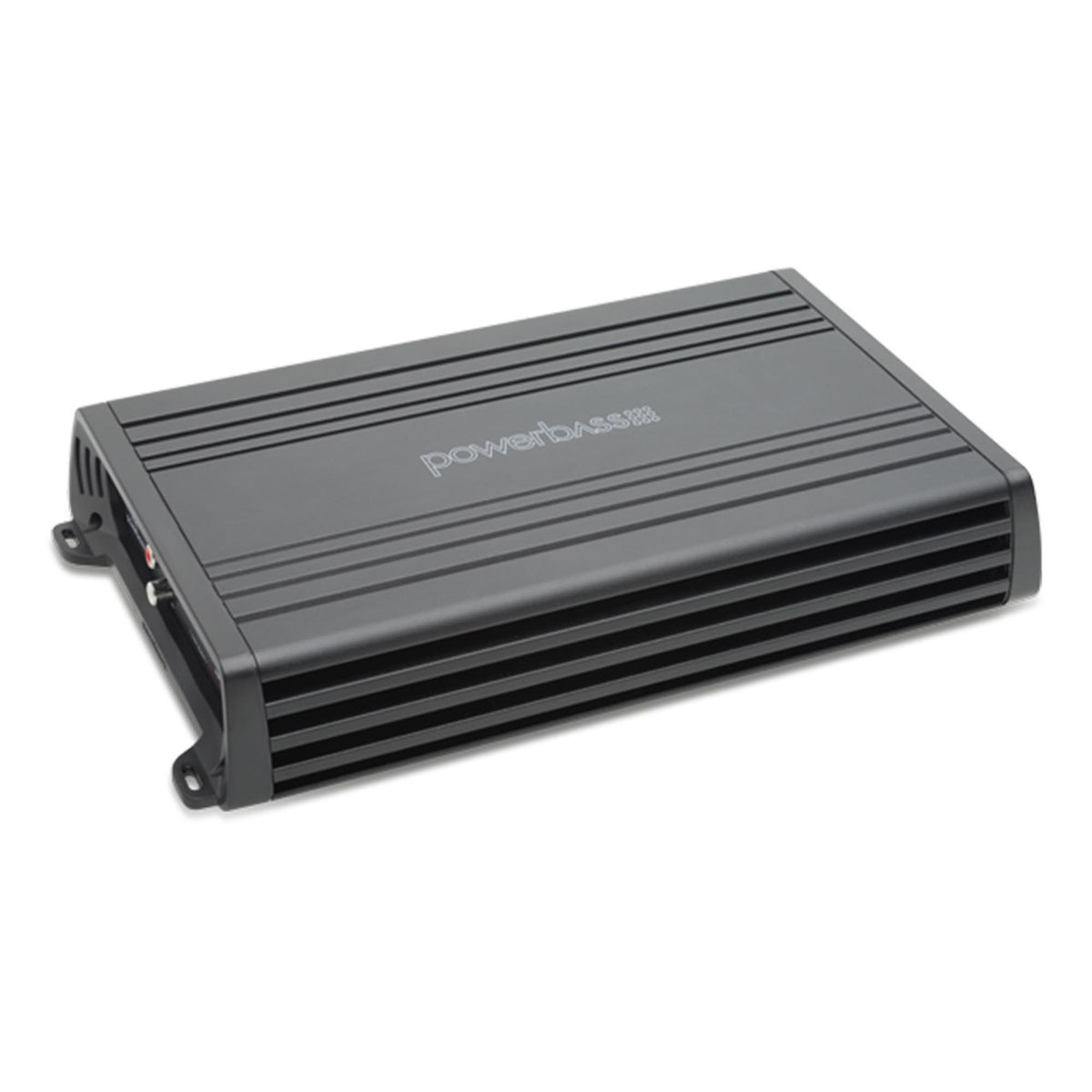

PowerBass PB-1000D amplifier main product view
PowerBass PB-1000D amplifier input and tuning controls
PowerBass PB-1000D amplifier power and speaker terminals
PowerBass PB-1000D amplifier main product view
PowerBass PB-1000D amplifier input and tuning controls
PowerBass PB-1000D amplifier power and speaker terminals
PowerBass

PowerBass PB-1000D 1000W RMS Mono Class D Amplifier

In stock
$279.99
Product details
  • Vendor PowerBass
  • SKU PB-1000D

Share the product:

Overview Shipping information Technical Specs

The PowerBass PB-1000D is a compact monoblock Class D amplifier for a vehicle subwoofer system. It produces 1,000 watts RMS at 1 ohm and provides speaker-level and RCA inputs. Its adjustable low-pass and subsonic filters, selectable bass boost, and gain control allow the output to be tuned to the system.

  • Model: PB-1000D; one-channel, 1-ohm stable amplifier
  • Power at 14.4V: 1,000W × 1 at 1Ω, 600W × 1 at 2Ω, or 400W × 1 at 4Ω
  • Variable low-pass crossover: 30–250 Hz; subsonic filter: 15–50 Hz
  • Selectable 0/+12 dB bass boost at 45 Hz
  • Remote level control port for optional PB-GAIN1 controller
  • Dimensions: 12 × 7.1 × 2 inches
  • Protection against overload, speaker short, overheating, and DC output

Verify the subwoofer load, wiring, and installation requirements before use.
