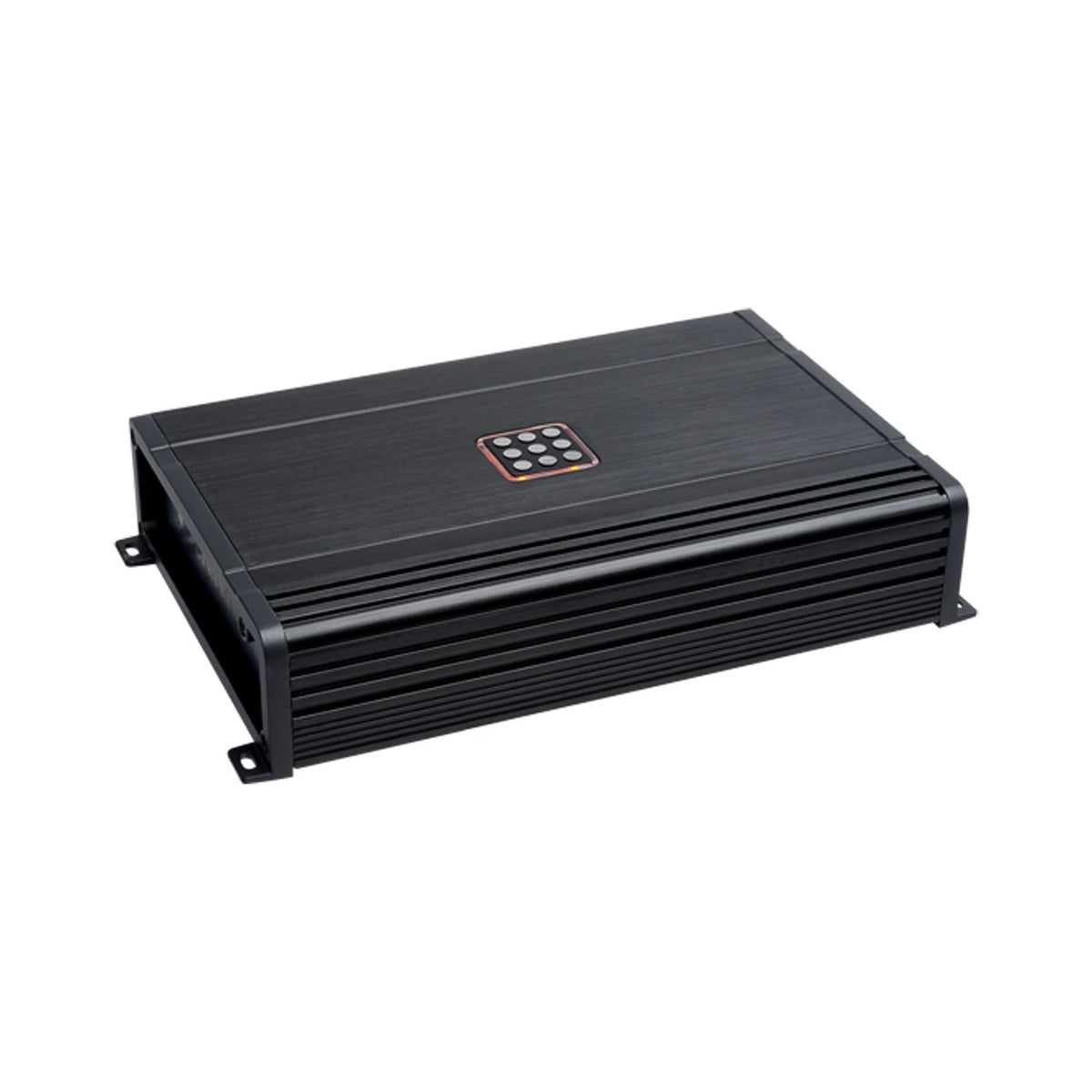

PowerBass PBX-500.4 product view

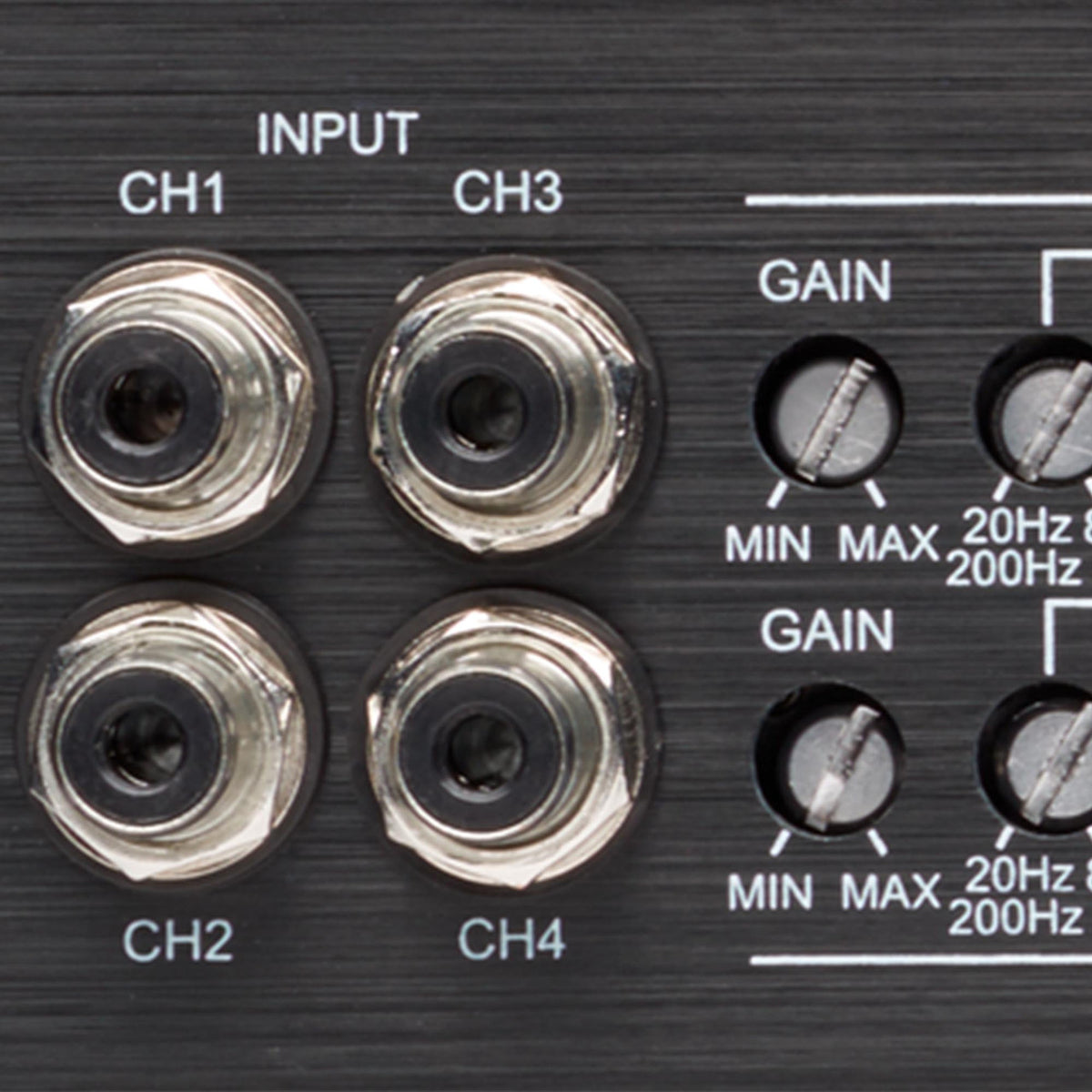

PowerBass PBX-500.4 detail view 2

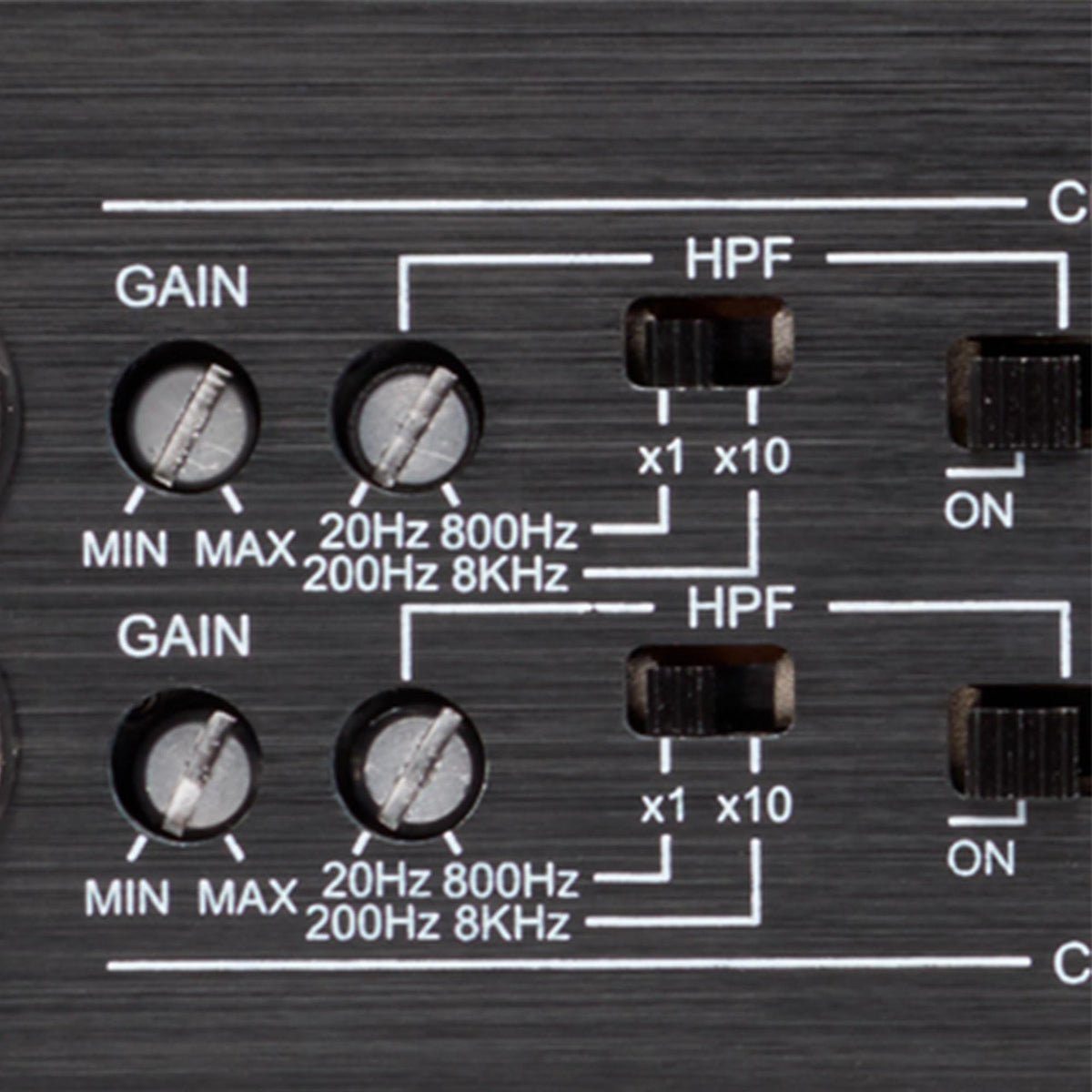

PowerBass PBX-500.4 detail view 3
PowerBass PBX-500.4 product view
PowerBass PBX-500.4 detail view 2
PowerBass PBX-500.4 detail view 3
PowerBass

PowerBass PBX-500.4 4-Channel Full-Range Class D Amplifier

In stock
$449.99
Product details
  • Vendor PowerBass
  • SKU PowerBass PBX-500.4
  • Barcode 823871009671

Share the product:

Overview Shipping information Technical Specs

The PowerBass PBX-500.4 provides four channels of full-range Class D amplification in a compact chassis. Balanced RCA inputs, adjustable gain and selectable filtering let you configure the amplifier for speakers or a bridged application. Efficient circuitry and a MOSFET power supply support strong output with low current draw.

Features

  • Four-channel design, stable at 2 ohms in stereo.
  • Selectable high-pass, low-pass and bandpass filtering.
  • Detented crossover controls and variable gain.
  • Double-sided copper-plated circuit board.
  • Protection for overload, short circuits, overheating and DC output.

Specifications

Manufacturer part number PBX-500.4
Output at 4 ohms 125W x 4
Output at 2 ohms 250W x 4
Bridged output at 4 ohms 500W x 2
Frequency response 10 Hz–40 kHz
Low-pass crossover 25–250 Hz
High-pass crossover 50–350 Hz
Dimensions 11.25 x 7 x 2.25 inches

Installation and included items

Includes one amplifier. Wiring, speakers and installation accessories are sold separately. Provide ventilation, use appropriately sized fused power wiring and match speaker loads to the selected channel configuration. Follow the supplied manual when setting crossover controls.
