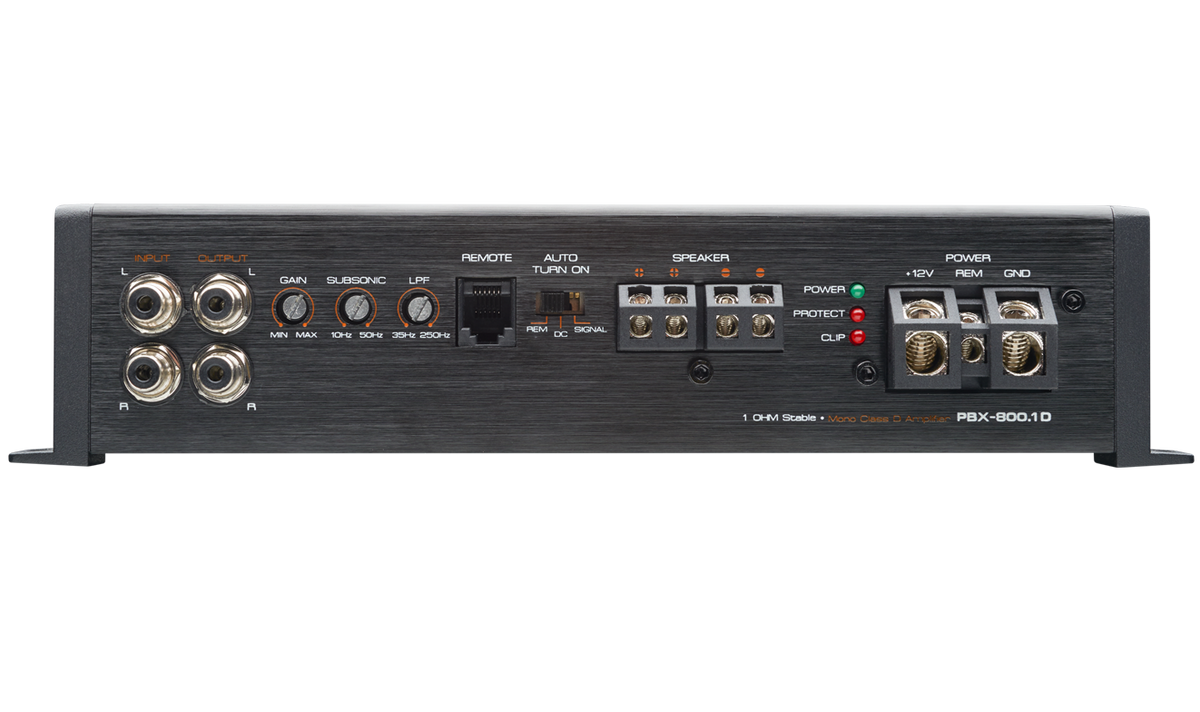

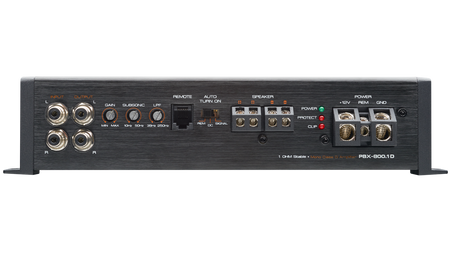

PowerBass PBX-800.1D mono amplifier product view

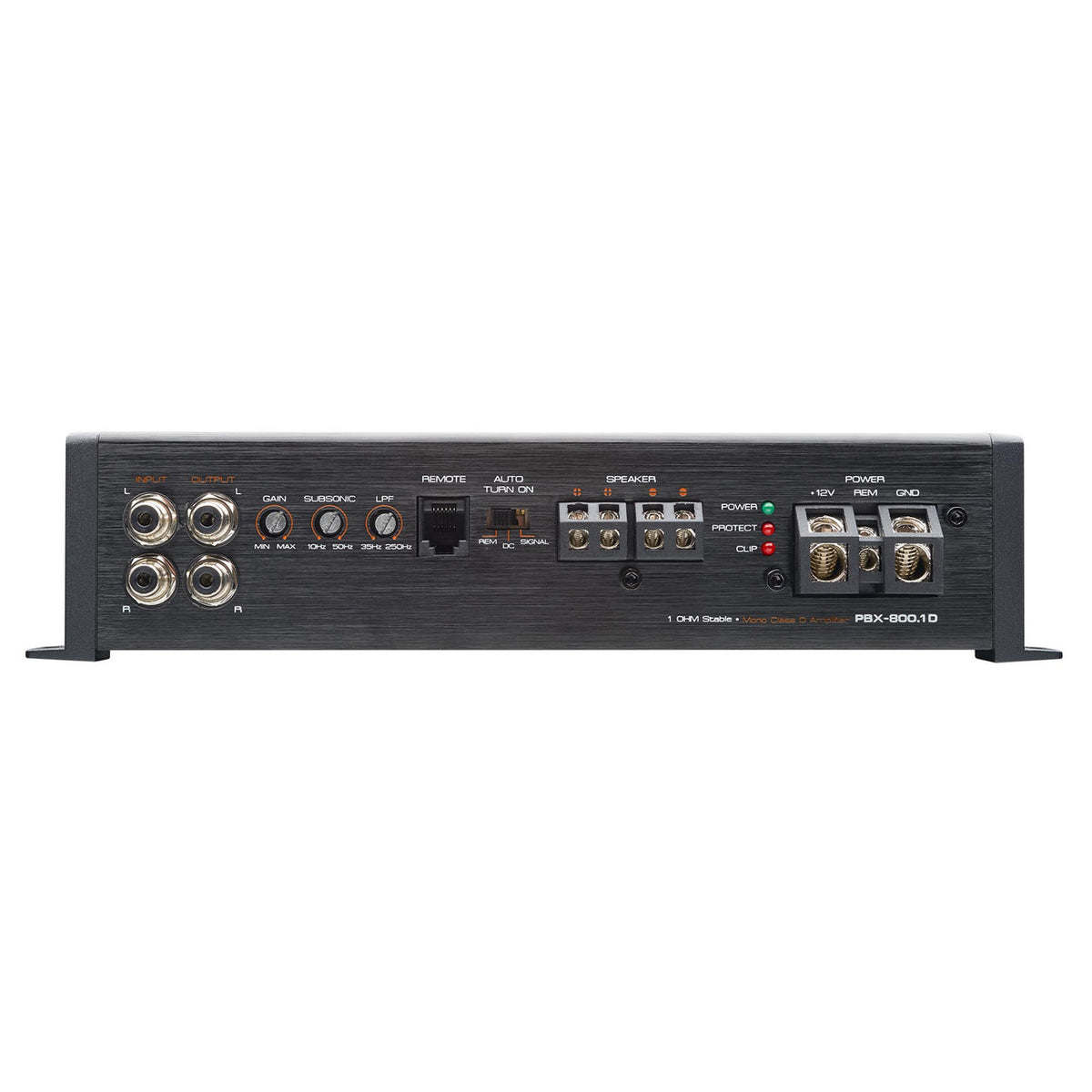

PowerBass PBX-800.1D amplifier controls and connections

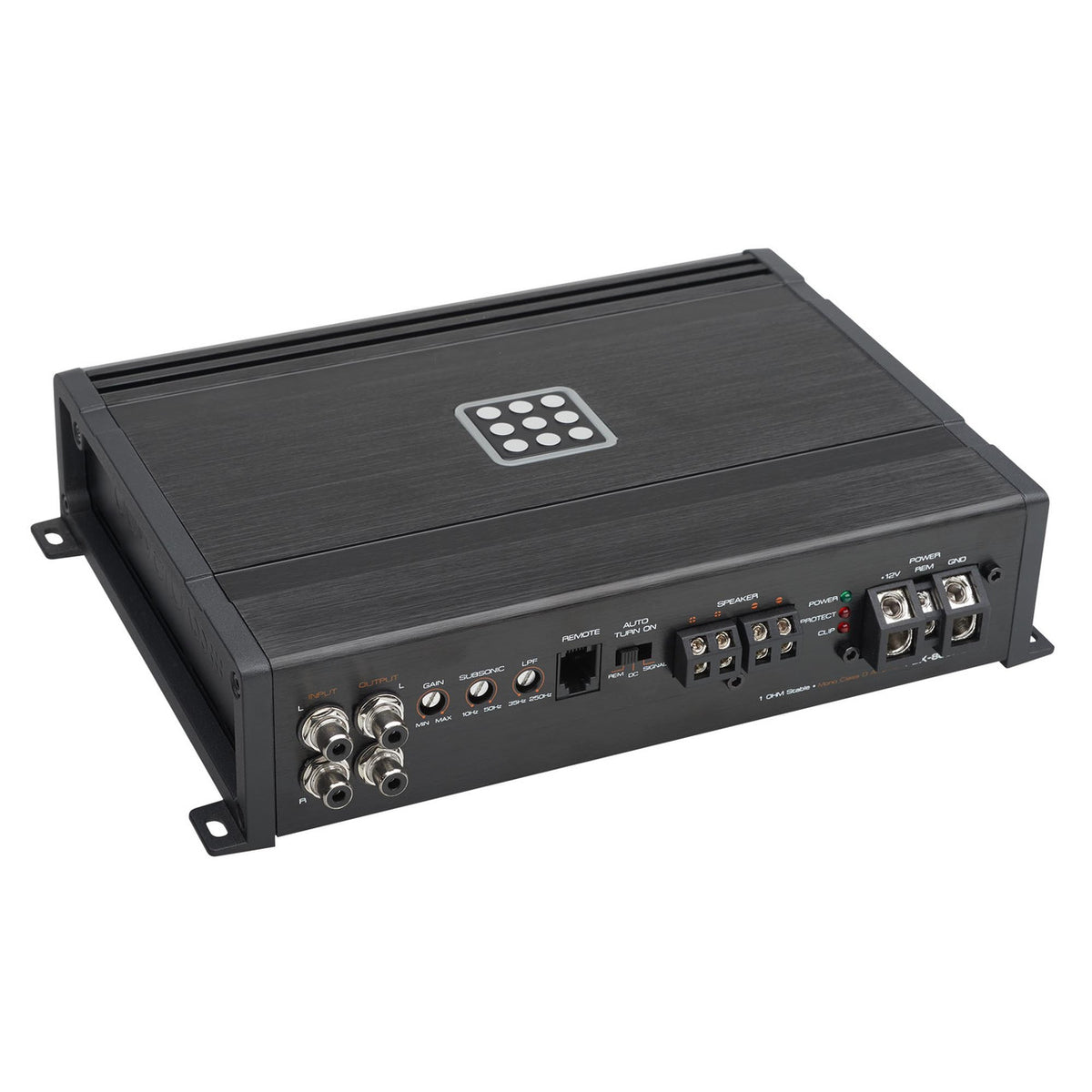

PowerBass PBX-800.1D amplifier alternate angle
PowerBass PBX-800.1D mono amplifier product view
PowerBass PBX-800.1D amplifier controls and connections
PowerBass PBX-800.1D amplifier alternate angle
PowerBass

PowerBass PBX-800.1D 800W RMS Mono Class D Amplifier

In stock
$359.99
Product details
  • Vendor PowerBass
  • SKU PBX-800.1D

Share the product:

Overview Shipping information Technical Specs

The PowerBass PBX-800.1D is a compact mono Class D amplifier for a car subwoofer system. It delivers 800 watts RMS at 1 ohm, 600 watts at 2 ohms, or 400 watts at 4 ohms. Front-load terminals and balanced RCA inputs simplify connection, while adjustable gain, low-pass and subsonic filters help tune the bass.

  • Model: PBX-800.1D; single-channel mono amplifier
  • Power at 14.4V: 800W × 1 at 1Ω; 600W × 1 at 2Ω; 400W × 1 at 4Ω
  • Low-pass crossover: 35–250 Hz
  • Wired secondary remote gain control included
  • Dimensions: 10.25 × 7 × 2.25 inches
  • Protection for overload, speaker short, overheating, and DC output

Match amplifier load and wiring to your subwoofer configuration and electrical system.
