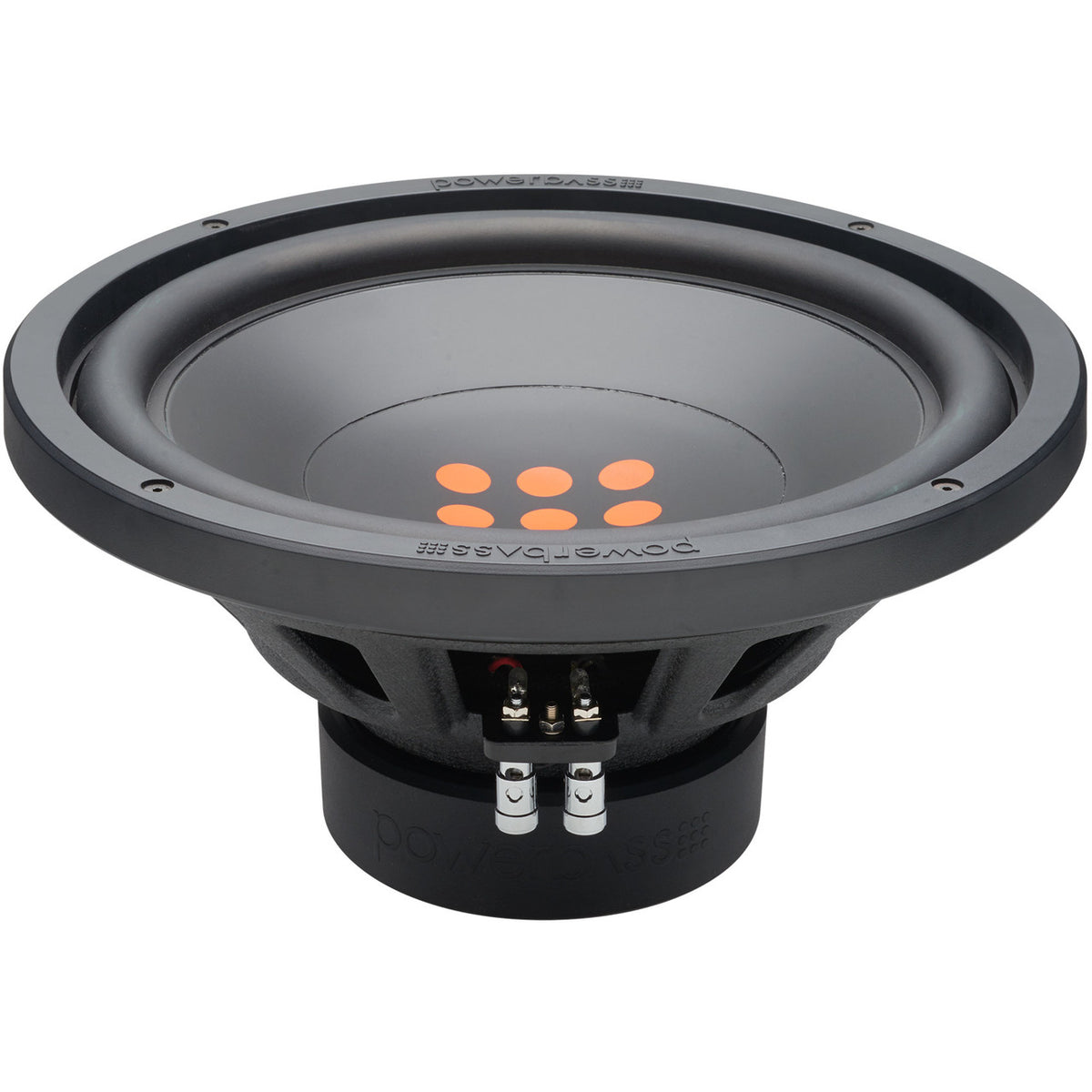

PowerBass PBX1-12D2 12" 500W RMS Dual 2-Ohm Subwoofer
Regular price
$124.99
Couldn't load pickup availability
The PowerBass PBX1-12D2 brings controlled low-frequency output to a custom car audio system. Its polycarbonate cone, hybrid Santoprene surround and progressive suspension support accurate cone movement, while voice-coil ventilation helps manage heat. The non-resonant steel basket works in either a properly designed sealed or ported enclosure.
Features

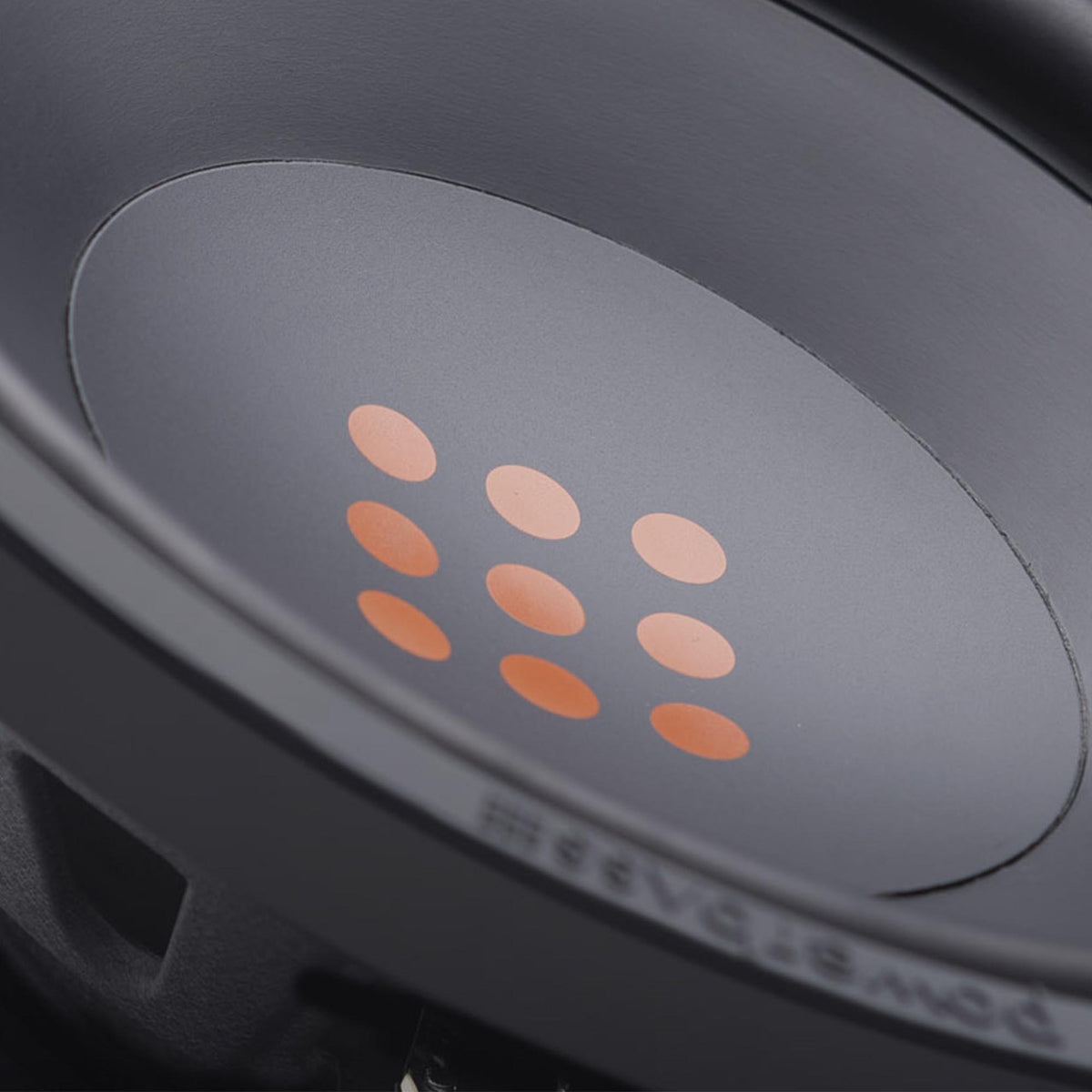

- Polycarbonate cone with a hybrid Santoprene surround.
- 2-inch vented BASV voice-coil former with perimeter cooling vents.
- Textured steel basket and chrome push terminals.
- Compatible PowerBass SWX grille available separately.
Specifications
| Manufacturer part number | PBX1-12D2 |
|---|---|
| Size | 12 inches |
| Voice coils | Dual 2 ohms |
| Power handling | 500W RMS / 1000W maximum |
| Mounting depth | 6 inches |
| Cutout diameter | 11 inches |
| Frequency response | 30–400 Hz |
| Sensitivity | 85 dB (1W/1m) |
| Recommended enclosure | Sealed or ported enclosure |
Installation and included items
Includes one subwoofer. Enclosure, amplifier and grille are sold separately. Wire both coils to achieve 1 ohm in parallel or 4 ohms in series, and select an amplifier rated for that load. Confirm mounting clearance and follow PowerBass's enclosure recommendations.
