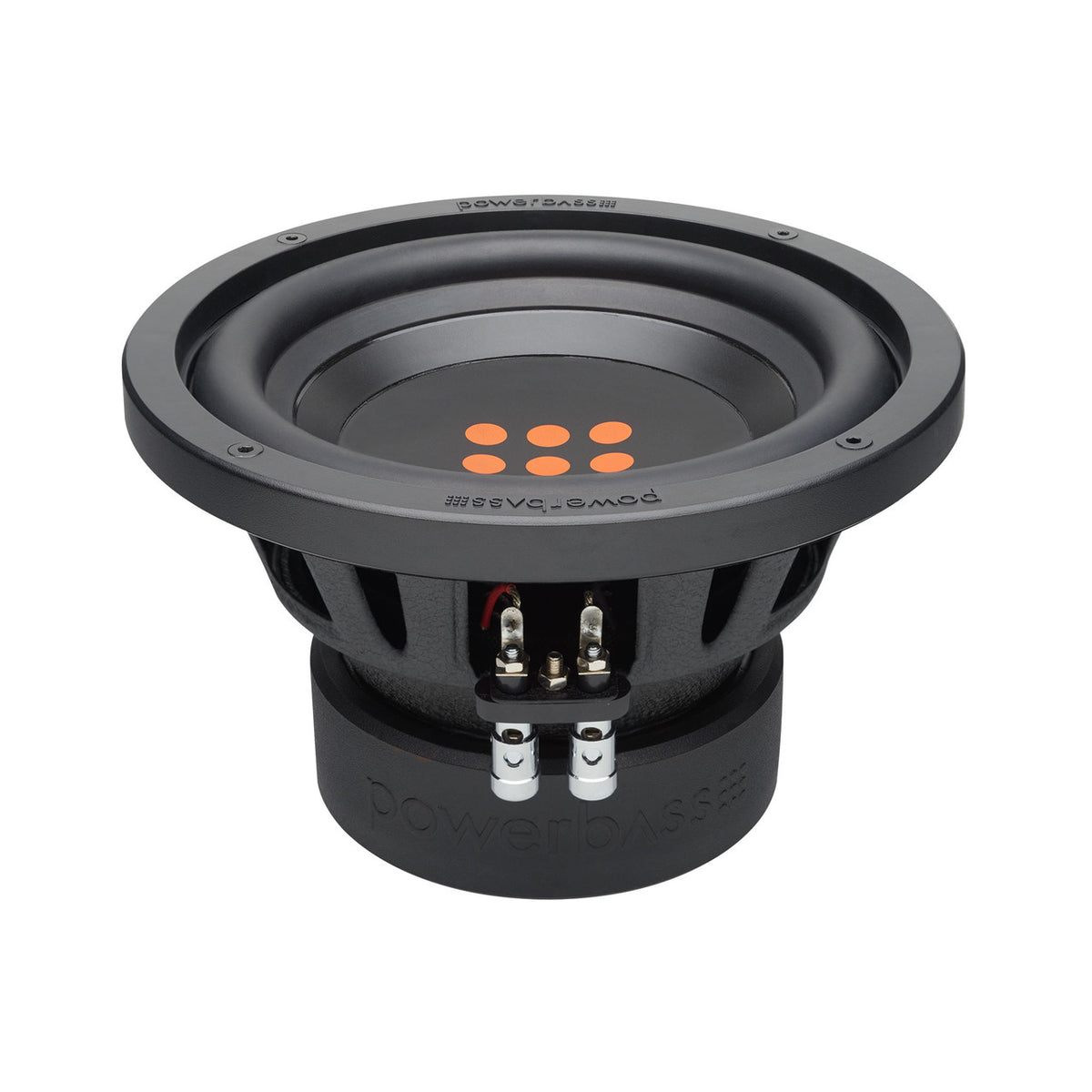

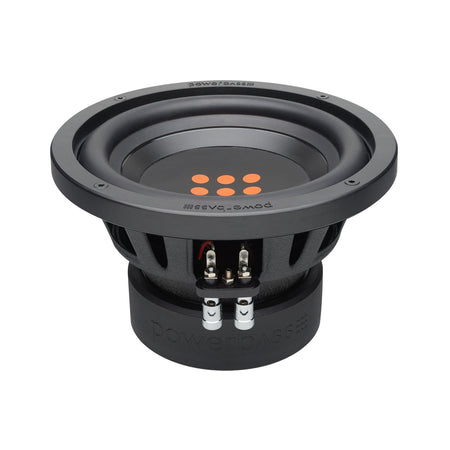

PowerBass PBX1-8D4 8" 300W RMS Dual 4-Ohm Subwoofer
Regular price
$79.99
Couldn't load pickup availability
The PowerBass PBX1-8D4 brings controlled low-frequency output to a custom car audio system. Its polycarbonate cone, hybrid Santoprene surround and progressive suspension support accurate cone movement, while voice-coil ventilation helps manage heat. The non-resonant steel basket works in either a properly designed sealed or ported enclosure.
Features
- Polycarbonate cone with a hybrid Santoprene surround.
- 1.5-inch vented BASV voice-coil former with perimeter cooling vents.

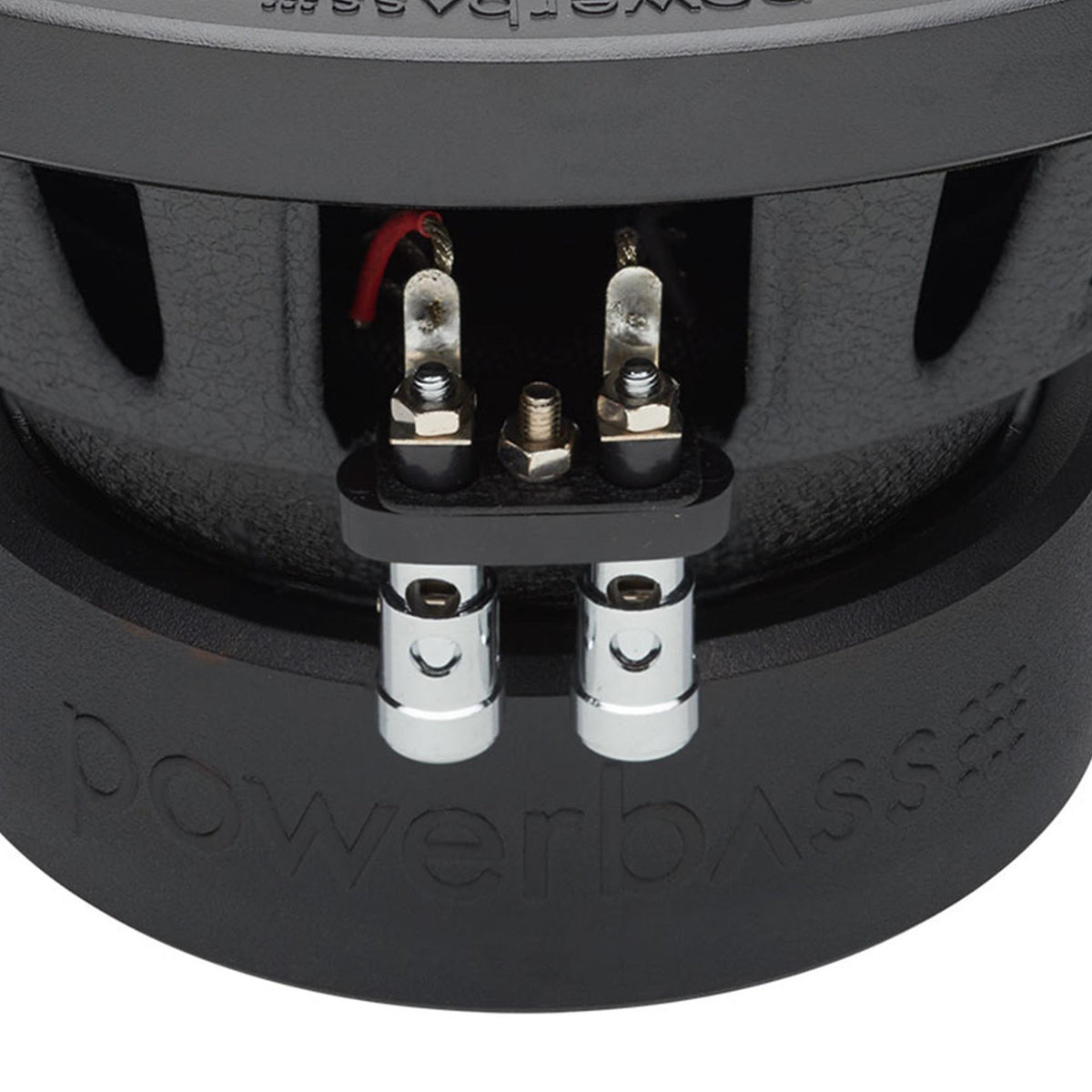

- Textured steel basket and chrome push terminals.
- Compatible PowerBass SWX grille available separately.
Specifications
| Manufacturer part number | PBX1-8D4 |
|---|---|
| Size | 8 inches |
| Voice coils | Dual 4 ohms |
| Power handling | 300W RMS / 600W maximum |
| Mounting depth | 5.25 inches |
| Cutout diameter | 7.125 inches |
| Frequency response | 45–400 Hz |
| Sensitivity | 82 dB (1W/1m) |
| Recommended enclosure | Sealed or ported enclosure |
Installation and included items
Includes one subwoofer. Enclosure, amplifier and grille are sold separately. Wire both coils to achieve 2 ohm in parallel or 8 ohms in series, and select an amplifier rated for that load. Confirm mounting clearance and follow PowerBass's enclosure recommendations.
