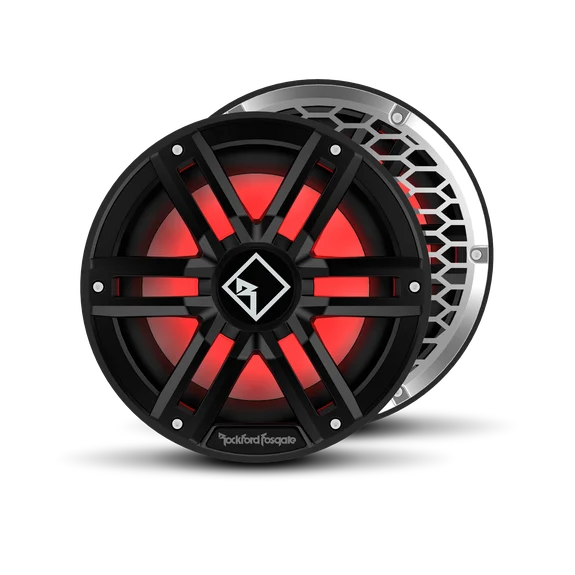

Rockford Fosgate M2D2-10SB Color Optix 10 Inch DVC 2 Ohm Multicolor LED Marine Subwoofer

Rockford Fosgate M2D2-10SB Color Optix 10 Inch DVC 2 Ohm Multicolor LED Lighted Marine Subwoofer for Sealed Enclosure Black/Stainless

The M2D2-10SB is a 10" DVC 2-Ohm Color Optix subwoofer that connects with our Rockford Fosgate Color Optix controller and RF Connect App, allowing you to customize your own color patterns. Connectivity is handled through integrated Deutsch/Amphenol connectors that make wiring simple and error proof. Wiring with the Versa Switch allows you to quickly configure the voice coil in series or parallel with flip of switch. This "S" model is optimized for small sealed enclosures where space is at a premium. Includes 2-piece grille with interchangeable colored plastic and stainless-steel insert.

The M2 series of Element Ready subwoofers are IP67 certified, making them truly purpose-built for marine and motorsport applications where protection from damaging UV rays and water spray is essential. They are designed to pair with the Rockford Fosgate Color Optix controller and RF Connect App through its Deutsch and Amphenol connectors integrated into the basket. To compliment the plug and play connectivity and streamline installation, M2 subwoofers are equipped with a Versa Switch to make changing impedance between 1 and 4 ohms as easy as flipping a switch. Matching the theme of your boat can be further customized by using the included color insert or stainless-steel grille for that sport look.

Features:

• Adjust color experience to suit your taste with Rockford Fosgate Color Optix controller (optional)
• Element Ready design protects against outdoor exposure
• Integrated Deutsch/Amphenol connectors make wiring connections simple and error proof
• Optimized for small sealed enclosures when there is very little space for an enclosure
• VERSA impedance switch quickly allows series or parallel configuration without additional wiring
• IPX6 Marine Grade for prevention of water intrusion
• Industry's first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
• Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
• Deutsch connector front/rear silicone seal protects against water ingress
• VAST vertical attach surround technique increases effective radiating cone area up to 25%
• 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
• Injection molded mineral filled polypropylene cone body with UV inhibitors
• Gold plated Marine grade brass terminals provide a corrosion resistant connection
• 2-piece grille allows for interchangeable stainless-steel or "sport" option
• Provides superb low and midrange frequency reproduction with smooth high frequency roll-off
• Klippel Verified certification program delivers the best possible loudspeakers
• 2-Year Warranty

Specifications:

• Size: 10"
• Power Handling (Watts RMS): 400 Watts
• Nominal Impedance (Ohms): 1-Ohm or 4-Ohm Switchable
• Voice Coil Diameter: 1.95" (49.53 mm)
• Voice Coil Type: Dual Voice Coil
• Magnet Weight (oz.): 32.9 oz. (0.9 Kg)
• Fs (Hz): 28
• Re (Ohms): 3.3
• SD (cm2): 363
• Le (mH): 3.43
• Qms: 4.48
• Sealed Box Volume (Vb): 0.5 cu. ft. (14 Liters)
• Qes: 0.91
• Qts: 0.75
• Vas: 36.4
• SPL (dB @ 1with1m): 86
• Xmax (mm): 12.0
• Woofer Displacement: 0.07 cu. ft. (2.03 Liters)
• Speaker Connector: Deutsch and 1/8" Spade
• Cutout Diameter: 8.87" (225.3 mm)
• Mounting Depth: 4.24" (107.7 mm)
• Shipping Weight: 8.5 Lbs. (3.85 Kg)
