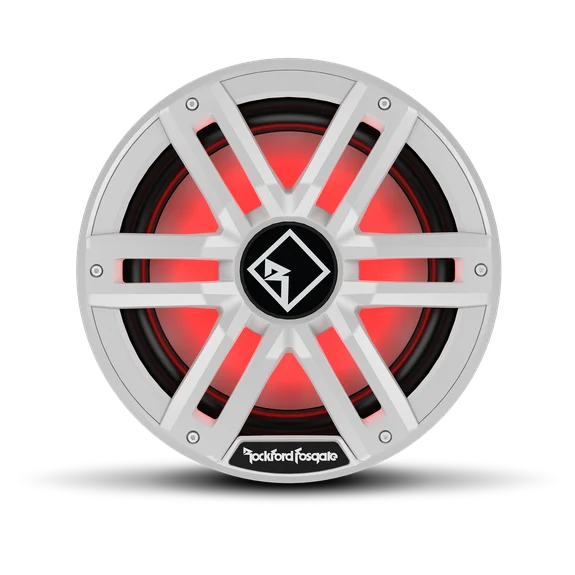

Rockford Fosgate M2D2-12I Color Optix 12 Inch Infinite Multicolor LED Marine Subwoofer

Rockford Fosgate M2D2-12I Color Optix 12 Inch DVC 2 Ohm Infinite Baffle Multicolor LED Lighted Marine Subwoofer White/Stainless

The M2D2-12I Color Optix 12" DVC 2-Ohm infinite baffle subwoofers deliver loud, clear, accurate bass, and light the way for your journey! M2 provides a customized look by using either the stainless-steel grille or the white "sport" grille inserts. The subwoofers connect with the Rockford Fosgate Color Optix Controller and RF Connect App, allowing you to customize your own color patterns. The Element Ready design and IPX6 certification makes them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential. This subwoofer is optimized for Infinite Baffle installations, where an enclosure is not required.

The M2 series of Element Ready subwoofers are designed to pair with the Rockford Fosgate Color Optix Controller and RF Connect App through its Deutsch and Amphenol connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M2 subwoofers are equipped with a Versa Switch to make changing impedance between 1 and 4 ohms as easy as flipping a switch. This subwoofer is optimized for Infinite Baffle installations, where an enclosure is not required. A mounting baffle is required to isolate any interaction between the front and rear wavelengths to prevent cancellation.

Features:

• Element Ready to withstand the harsh outdoor environment
• Element Ready design protects lighting from exposure
• Adjust color experience to suit your taste with Rockford Fosgate Color Optix controller (optional)
• Integrated Deutsch/Amphenol connectors make wiring connections simple and error proof
• Industry's first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
• Bright, wide-angle LEDs provide rich, reliable illumination
• VERSA impedance switch quickly allows series or parallel configuration without additional wiring
• Gold plated marine grade brass terminals provide a corrosion resistant connection
• 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
• Deutsch DT connectors incorporate front/rear silicone seals to protect against environmental ingress
• 2-piece grille allows for interchangeable stainless-steel or "sport" option
• Optimized for infinite baffle applications when an enclosure is not an option
• Injection molded mineral filled polypropylene cone body with UV inhibitors
• Provides superb low and midrange frequency reproduction with smooth high frequency roll-off
• VAST vertical attach surround technique increases effective radiating cone area up to 25%
• Klippel Verified certification program delivers the best possible loudspeakers
• IPX6 Water Intrusion Rated
• 2-Year Warranty

Specifications:

• Size: 12"
• Nominal Impedance (Ohms): 1-Ohm or 4-Ohm Switchable
• Power Handling (Watts RMS): 400 Watts RMS 1,600 Watts PEAK
• Voice Coil Type: Dual Voice Coil
• Voice Coil Diameter: 1.95" (49.53 mm)
• Magnet Weight (oz.): 61.09 oz. (1.7 Kg)
• Frequency Response (Hz): 20 Hz - 750 Hz
• Fs (Hz): 38
• Re (Ohms): 3.3
• Le (mH): 3.43
• SD (cm2): 539
• Qms: 4.7
• Qes: 1.04
• Qts: 0.85
• Vas: 64
• SPL (dB @ 1with1m): 88
• SPL (dB @ 2.8v): 90
• Xmax (mm): 15
• Woofer Displacement: 0.121 (3.43 Liters)
• Speaker Connector: 2-pin Deutsch and 1/8" Spade
• Cutout Diameter: 11" (279.4 mm)
• Mounting Depth: 5.13" (130.4 mm)
• Shipping Weight: 14.26 Lbs. (6.47 Kg)
