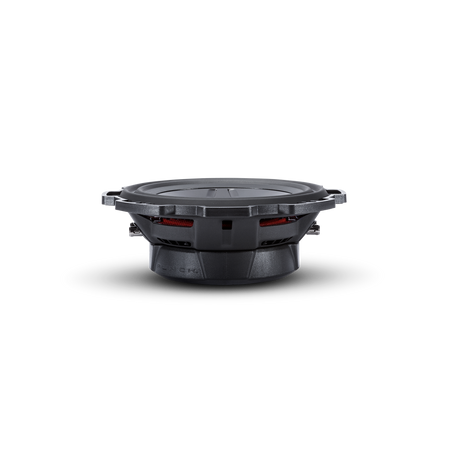

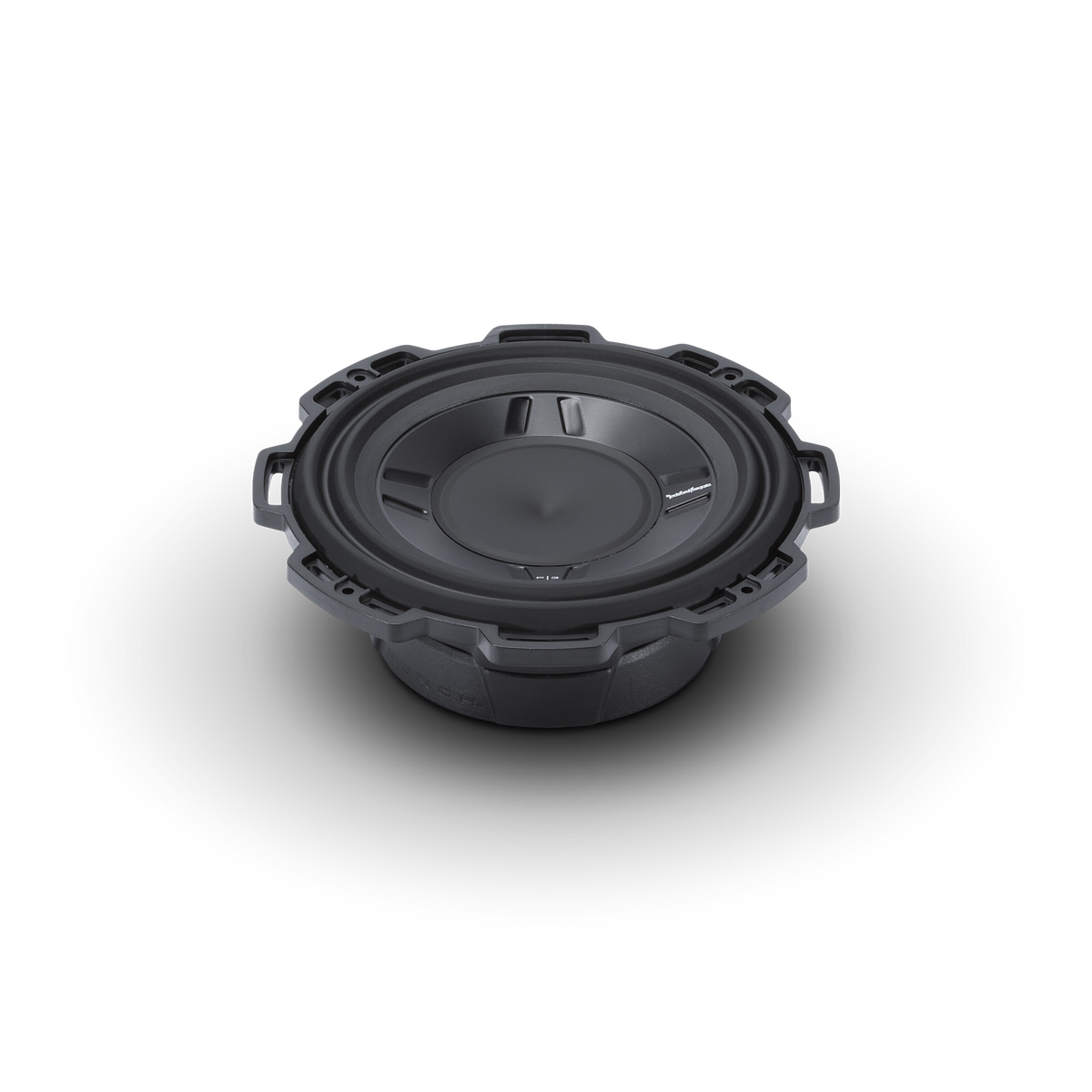

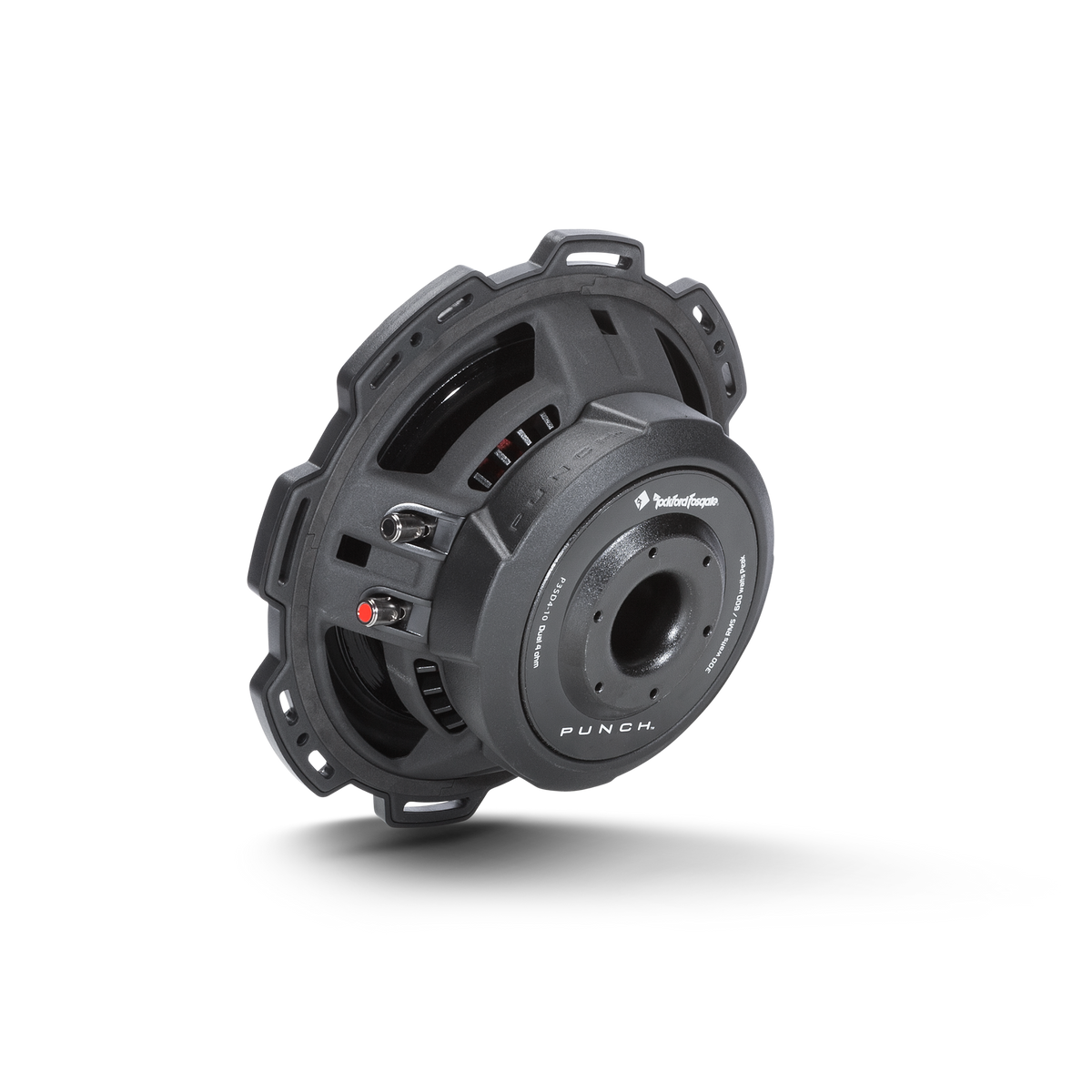

Rockford Fosgate P3SD4-10 Punch 10 Inch P3S Shallow 4 Ohm DVC Subwoofer

The Rockford Fosgate P3SD4-10 Punch P3S 10-inch shallow-mount subwoofer delivers powerful bass in installations where mounting depth is limited. Dual 4-ohm voice coils provide flexible wiring options, while the shallow motor assembly fits spaces that cannot accommodate a traditional deep subwoofer.

Features

• 300 watts RMS power handling and 600 watts maximum power
• Dual 4-ohm voice coils

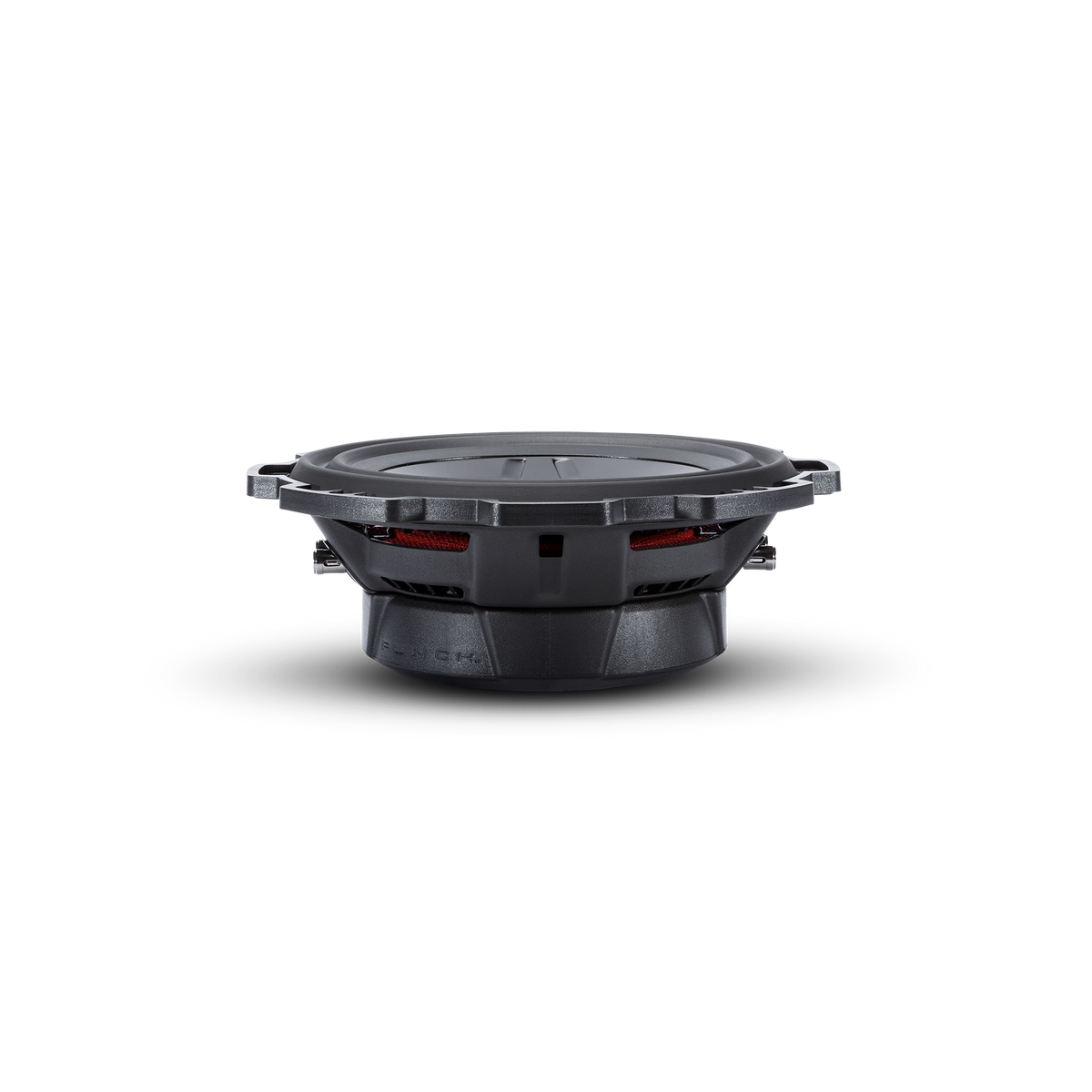

• Shallow motor assembly
• Anodized aluminum cone and dust cap
• M-Roll Santoprene surround
• StampCast basket with integrated spider venting
• Dual linear spider with embedded 16 AWG tinsel leads
• Optimized for sealed and vented enclosures

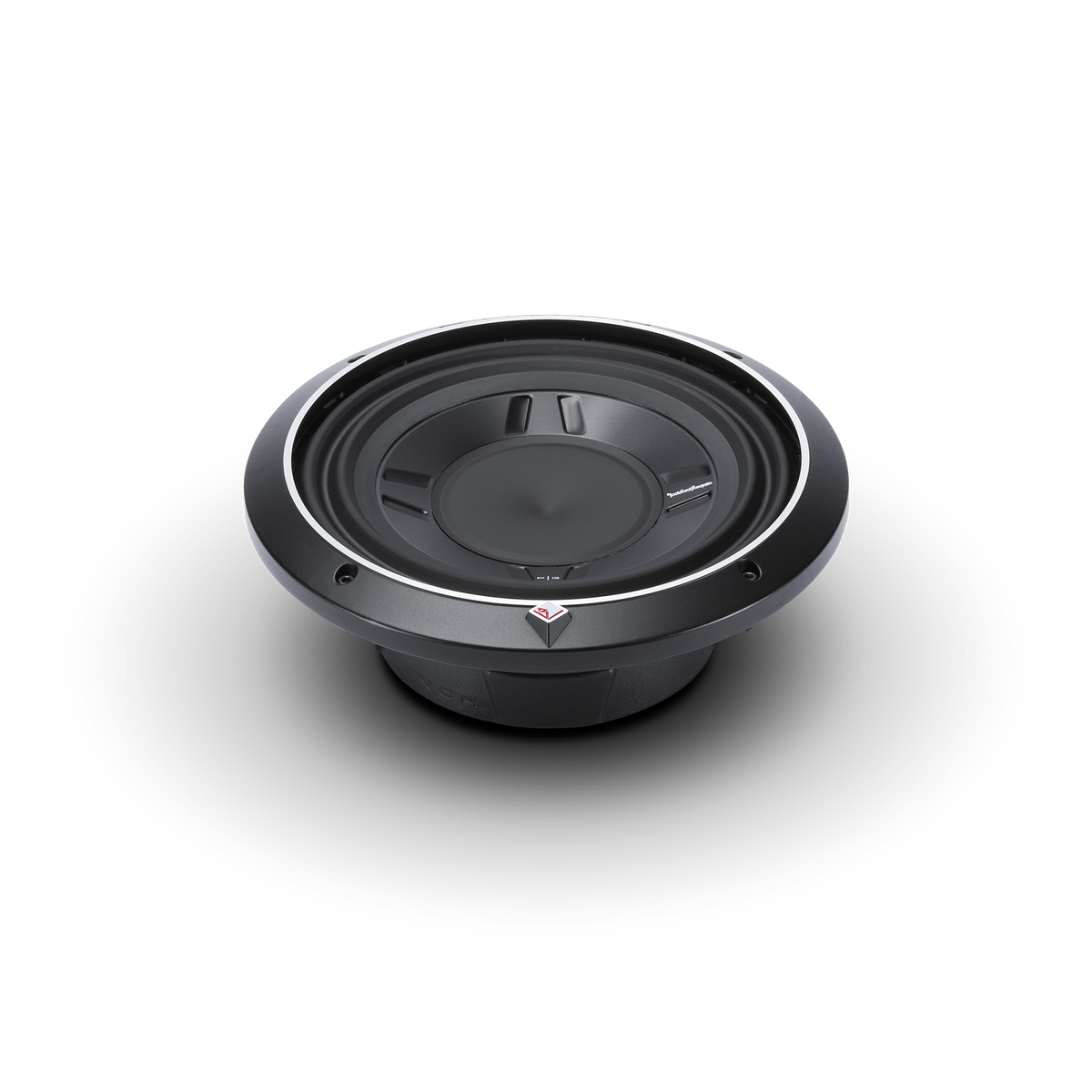

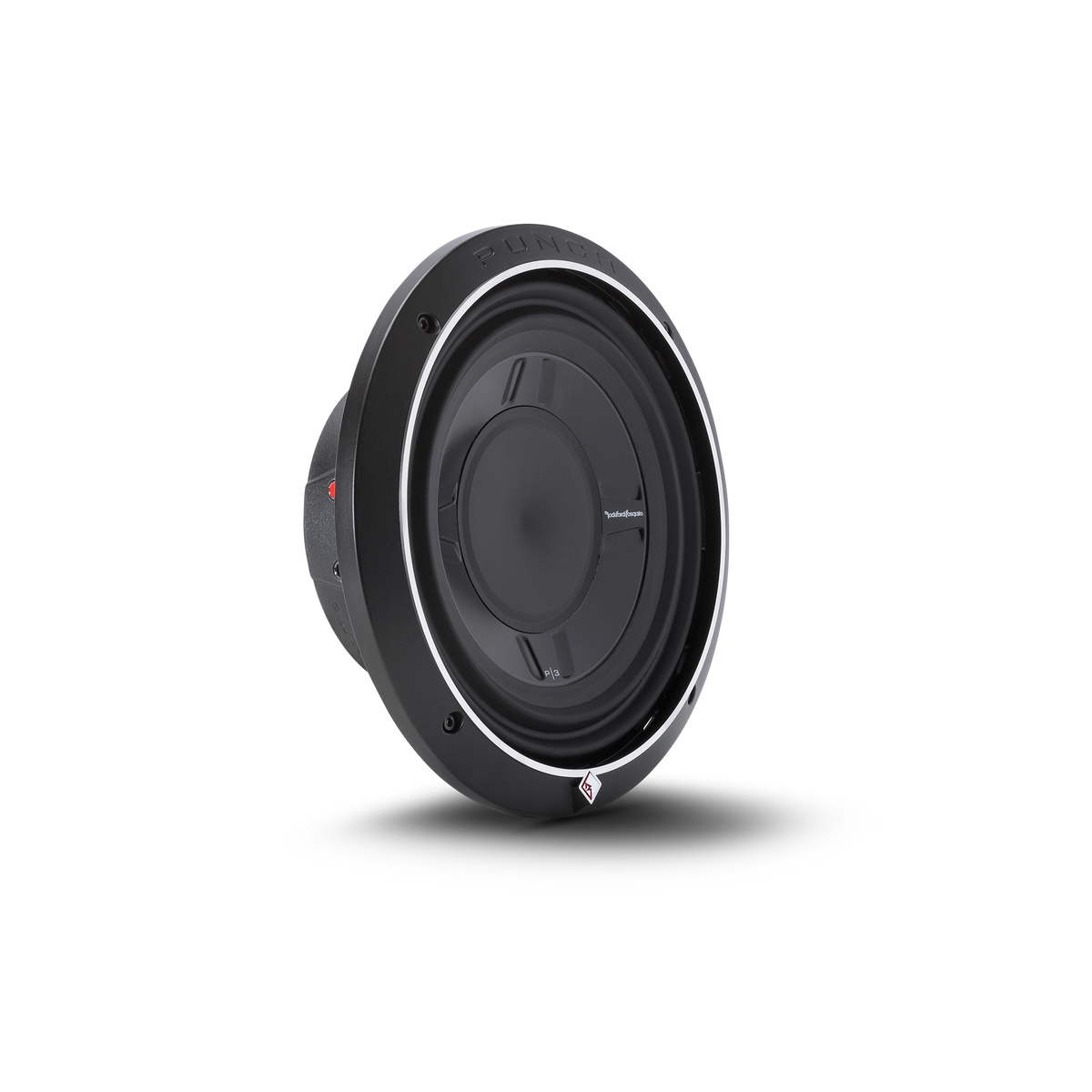

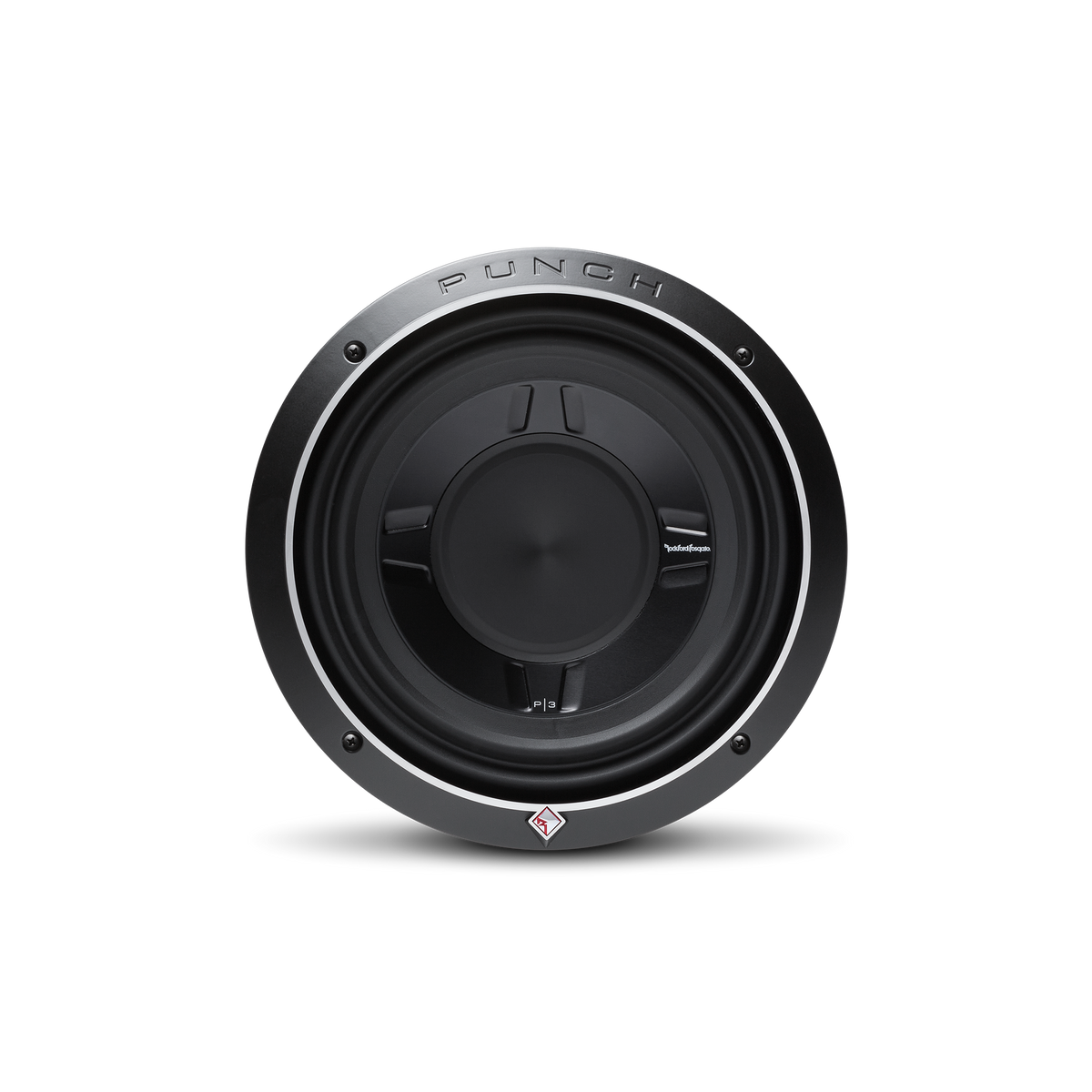

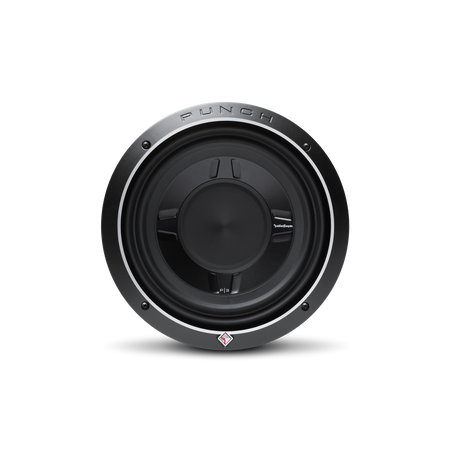

• Diamond-cut cast aluminum trim ring with optional grille
• 1-year manufacturer warranty

Specifications

• Size: 10 inches
• Nominal impedance: Dual 4 ohms
• Voice coil diameter: 2.5 inches (65.5 mm)
• Sensitivity: 83 dB at 1 watt/1 meter
• Mounting depth: 3.50 inches (89 mm)
• Cutout diameter: 9.06 inches (230 mm)
• Sealed enclosure volume: 0.5 cubic feet (14.1 liters)
• Vented enclosure volume: 1.0 cubic foot (28.3 liters)

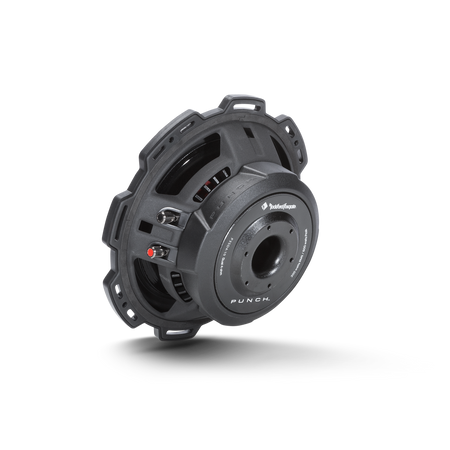

• Speaker connectors: Dual 10 AWG compression terminals
• CEA-2031 compliant
