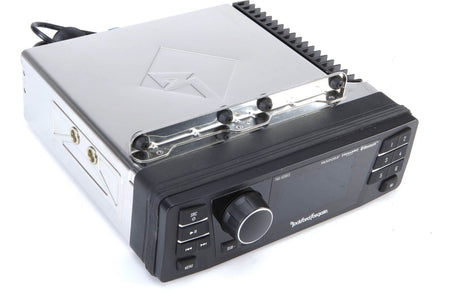

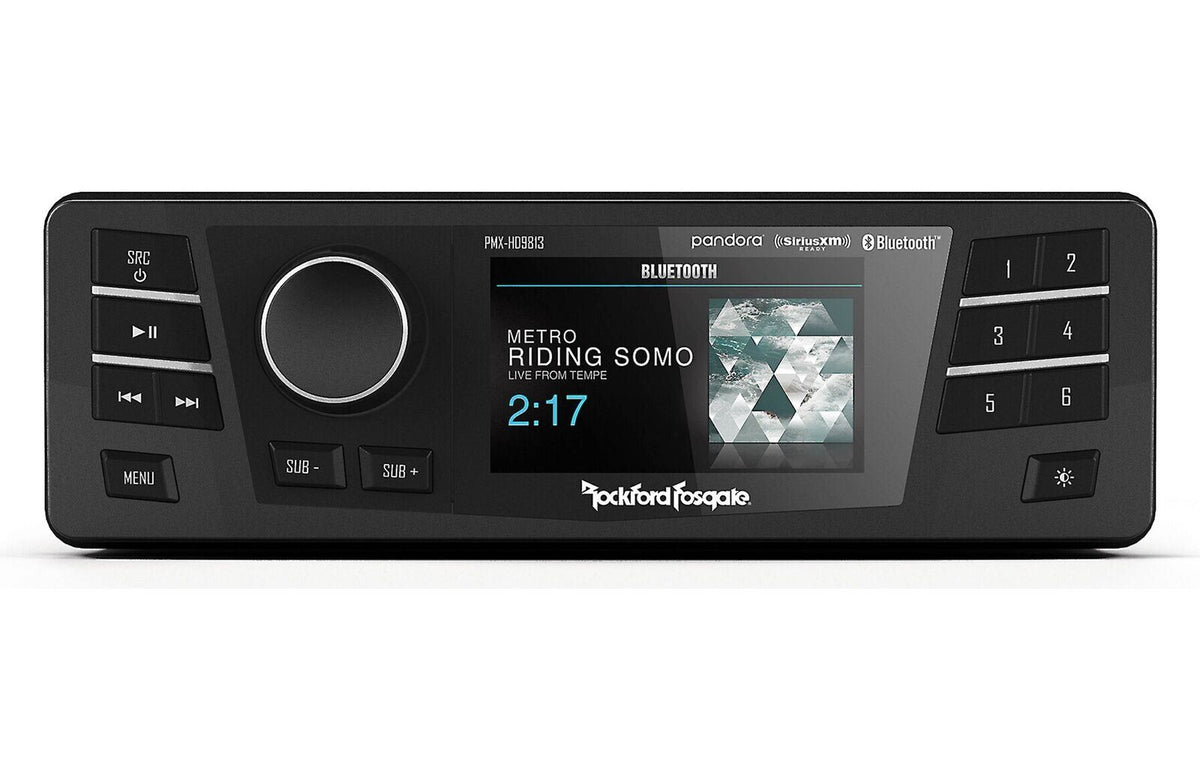

Rockford Fosgate PMX-HD9813 Digital Media Receiver Radio Stereo Compatible with HD 98-13

Rockford Fosgate PMX-HD9813 Digital Media Receiver Radio Stereo Compatible with Harley 1998-13

Direct replacement digital media receiver for select 1998 - 2013 Compatible with Harley-Davidson motorcycles. Features 3-inch full color, ultra-bright display with day/night modes and oversized buttons for easy control. Engineered for the ultimate in performance and sound quality featuring 4-Volt pre-amp outputs that don't clip! Plug and play installation with OEM electrical system requires no additional wiring or cutting of existing factory harnesses or components. Retains factory thumb controls.

Plug and play installation requires factory wiring harness and connectors in order to retain functionality. Systems requiring rear speaker-line outputs will require additional harness (sold separately). PMX source unit not compatible with factory amplified systems, CB, Intercom, rear volume controls, rear speakers on 1998-2005 Ultra's, and factory equipped satellite radio systems. Estimated installation time is 1 hour.

Features:

• A2DP and AVRCP Bluetooth Wireless Streaming
• Pandora Internet Radio Control
• SiriusXM Ready (requires SiriusXM SXV300 tuner)
• Digital AM/FM Tuner
• USB Input with 1.5A USB Charging
• AUX Input
• 3" Full Color TFT Display with Day/Night Mode
• Retains Factory Handle Bar Audio Controls
• Voltage gauge with Low voltage Warning
• 7-Band Graphic EQ + PEQ
• Plug and Play Installation with OEM electrical connectors
• Independent Subwoofer Level Control
• Compatible with PMX-BTUR Remote control
• Multi Region Radio Frequencies
• Selectable HP/LP/AP Crossover with Selectable 12/24 dB/Octave Slope
• Software updatable via USB
• 2 Year Warranty
• *Antenna not included

• Output Power - 25W x 4 @ 4 RMS,50W x 4 @ 2 MAX, ≤1.0% THD+N
• Operating Voltage - 9.5 - 16 VDC
• Idle Current - < 2 Amps
• Output Impedance - < 500 Ohms
• Frequency Response - RCA: 20Hz - 20 kHz, High-Level: 20Hz - 20 kHz
• THD+N - 4-Ohms: < 1.0 %
• RCA Output Voltage - Front: 4 V Max, Rear: 4 V Max, Sub: 4 V Max
• Channel Separation - RCA: > 50 dB, High-Level: > 50 dB
• Signal-to-Noise Ratio - RCA 2V: > 85 dB, High Level (CEA-2006): > 75 dB, Max Wrms: > 80 dB
• AM Tuner - Range: 530 - 1710 kHz, Sensitivity: 40 dB, Frequency Response: 45 to 2.4 kHz
• FM Tuner - Range: 87.9 - 107.9 MHz, Sensitivity: 8 dB, Frequency Response: 20 - 15 kHz
• Bluetooth - 3.0+EDR,A2DP 1.3
• Supported Media Formats - MP3,WMA,AAC,DRM
• USB Version - 2.0
• USB Output Current - 1.5A

• 32 Gb max, 255 Folders max, 999 Songs max
• Format Win USB as FAT32
• Format Mac USB as MS-DOS (FAT)
• Clock - Yes

• Nominal Size: 3" Color TFT
• Resolution: 960 x 240
• Brightness: 380 nits
• Contrast: 400
• Pixels: 320 x 240
• View Angle: 120

• Compatible with iPhone XS Max
• Compatible with iPhone XR
• Compatible with iPhone 8 Plus
• Compatible with iPhone 7 Plus
• Compatible with iPhone SE
• Compatible with iPhone 6s
• Compatible with iPhone 6
• Compatible with iPhone 5c
• Compatible with iPhone XS
• Compatible with iPhone X
• Compatible with iPhone 8
• Compatible with iPhone 7
• Compatible with iPhone 6s Plus
• Compatible with iPhone 6 Plus
• Compatible with iPhone 5s
• Compatible with iPhone 5

• Compatible with iPod touch (5th generation)
• Compatible with iPod touch (6th generation)
