Rostra 250-8222 7" Quad-View Capable Monitor

Rostra 250-8222 7" Quad-View Capable Monitor

Feature a 7” LCD screen with multi-camera split view capability, four video inputs (can be individually triggered), the ability to surface mount the screen using the included pedestal stand or as a rearview mirror replacement through the use of the 5” stem mount (included with monitor 250-8223). Our wide variety of paired universal and vehicle-specific camera solutions for the most popular vehicle applications on the road make this monitor a best-in-class solution for your fleet.

Product Specifications:

• Screen Size: 7 Inch
• Aspect Ratio: 16:9
• Luminance: 250cd/m²
• Resolution: 800x480
• Video: 4 Video Inputs
• Triggers: 4 Separate Triggers
• System: Automatic NTSC/PAL Switching

• Voltage: 12V-24V
• Built-In Speaker: 1 Channel Audio (CH1)
• Sunshade: Include, Fixed/Non-Removable

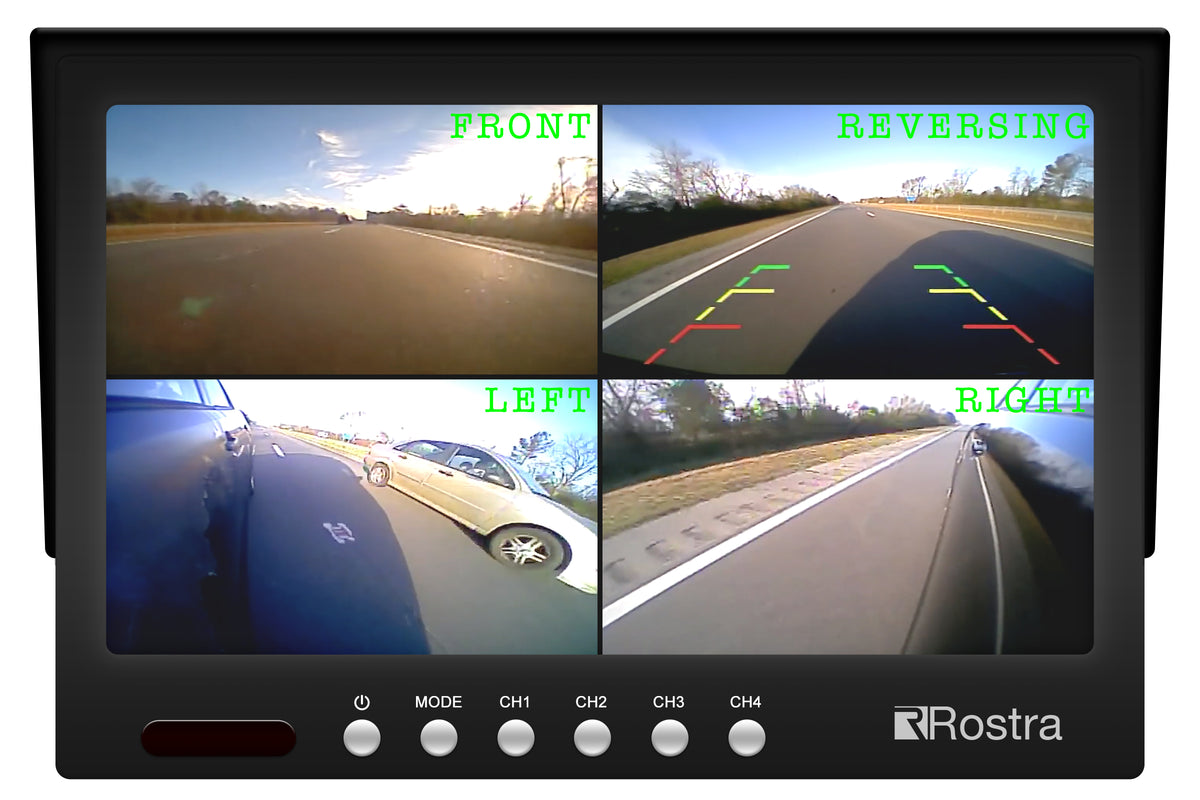

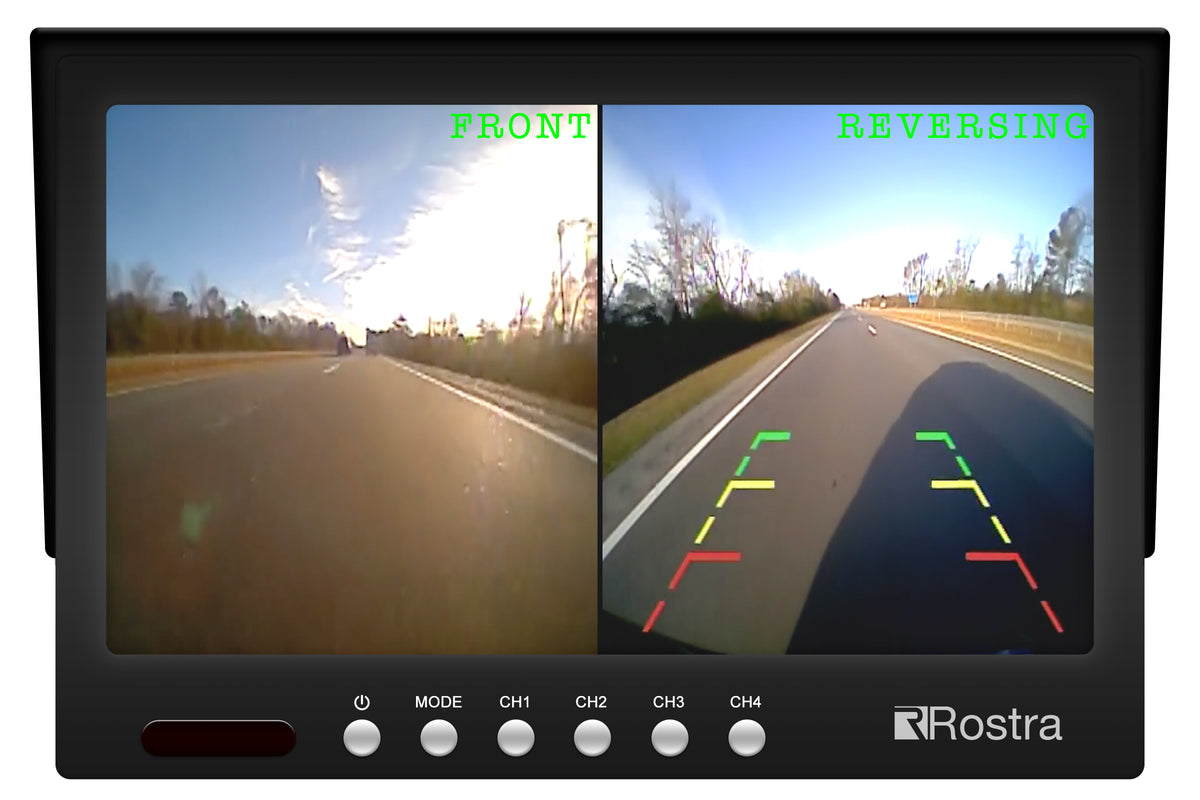

• Mode: Full Screen, 2 Split, 3 Split, 4 Split
• Mounting: Stand Type with 250-8222
• Mounting: Windshield Mount with 250-8223

• OSD Menu: Selects Picture, Volume, Mirror Image, Language, Delay
• Setup: Mirror Image Selectable and Adjustable Image Delay After Trigger On All Inputs
• Language: English, German, French, Spanish, Portuguese, Italian, Chinese, Turkish

Note: While many of the features of the 250-8222 and 250-8223 monitors are accessible using the buttons on the face of the monitor, the included IR remote control is necessary for modifying picture settings, speaker volume, mirror image switching, system language, trigger-off delay settings, and more.
